Magnetic and Structural Behaviour of Cobalt and Nickel Substituted Calcium W-type Nanosize Hexaferrites

Smita C Tolani^1* and Kishorchandra G Rewatkar²

¹St. Vincent Pallotti College of Engineering and Technology, Nagpur, India.

²Department of Physics, Dr. Ambedkar College Nagpur, India.

Corresponding Author E-mail: smitatolani@gmail.com

DOI : http://dx.doi.org/10.13005/msri/180305

ABSTRACT:

The available literature and research work on W-type hexaferrites is mainly focused on Co- and Zn-based calcium W-type hexagonal ferrites with a variety of cationic substitutions. The Modifications in the properties of the Calcium W-type ferrite based on Ni²⁺ as the divalent metal ion, however, is not studied sufficiently in the research literature vailable. In this study, the focus is mainly on the effects of substitution of Ni²⁺ on the properties of CaCo₂W exaferrites. The investigations carried out are mainly XRD, SEM and VSM. The main objective of this research investigation is to study the effect of substitution of Nickel and Cobalt on the structural and magnetic properties of calcium W-type hexaferrite CaCo_2-xNi_xFe₁₆O₂₇ (x=0, 1 and 2). XRD analysis and characterization revealed slight decrease in the values of lattice constants ‘a’ and ‘c’ with increase in concentration ‘x’. The particle size was confirmed from SEM and TEM images. The analysis of VSM for magnetic properties reveals decrease in coercivity and increase in the values of saturation magnetization as concentration increases. The results of measurements made bythe various experimental techniques and the observations were compared to understand the crystalline and magnetic structure of the compounds

KEYWORDS: Co₂W Hexaferrite; Ca-Hexaferrites; c-axis anisotropy; Sol-Gel Auto Combustion; VSM, Ni-Substitution; W-type Ferrite

Copy the following to cite this article: Tolani S. C, Rewatkar K. G. Magnetic and Structural Behaviour of Cobalt and Nickel Substituted Calcium W-type Nanosize Hexaferrites. Mat. Sci. Res. India;18(3).

Copy the following to cite this URL: Tolani S. C, Rewatkar K. G. Magnetic and Structural Behaviour of Cobalt and Nickel Substituted Calcium W-type Nanosize Hexaferrites. Mat. Sci. Res. India;18(3). Available from: https://bit.ly/3bhAsJY

Introduction

Magnetic materials are ubiquitous throughout industry. Two well-known major branches of magnetic materials are metallic magnetic materials and ceramic mag-oxides. These magnetic materials are called ferrites. There are three types of ferrite materials: spinels, garnets and hexaferrites ^1-5. The spinels and garnets exist as cubic crystal structures, whereas the hexaferrites exist as hexagonal crystal structures. Basically, different crystal structures will give them different magnetic, dielectric and mechanical properties.⁶ They possess some common properties like high values of permeability& permittivity, low magnetic losses, high Curie temperature, good mechanical strength, and high values of magnetisation. W type hexaferrite crystal structures belong to P63/mmc space group, and they have a stacking sequence of RSSR*S*S*, which is very similar to the stacking sequences of M type hexaferrites. Barium W-type ferrites has a molecular formula of BaMe₂Fe₁₆O₂₇, where Me is usually divalent transition metal ions which occupies tetrahedral, octahedral and trigonal bipyramidal sites. Most of the divalent metal substituted W-type hexaferrites (i.e. Zn₂W, Ni₂W and Fe₂W) hexaferrites have magnetic anisotropy perpendicular to the c-axis; however Co₂W hexaferrites have c-axis anisotropy. ⁷

In Calcium W-type hexagonal structure it is reported that the Fe ions have seven different sites namely 4fvi, 2d, 12k, 6g, 4f, 4fiv, and 4e or therenexists five magnetic sites. ⁸ The substitution of different divalent and trivalent ions into the lattice of Calcium W-type hexagonal ferrites can improve the magnetic characteristics and properties like permeability, and saturation magnetization.⁹ Hexaferrites are the materials having a hexagonal crystal structure. There are basically six different types of hexagonal ferrite structures like:  W, M, Z, Y, U and X. The general formula of hexagonal ferrites can be depicted as MxMez(Fe₂O₃)y, where the ratios of x/y for W, M, Z, Y, U and X are found to be 1:8, 1:6, 1:4, 1:3, 2:9 and 1:7 respectively ^10-12. Like Z type hexaferrites, the preferred magnetization of W type hexaferrites varies with different metal substitution.^13-14

The divalent and trivalent cations when added to the sub lattices of W-type hexagonal ferrite have been found to create various applications. Hexagonal ferrites synthesized incorporating many methods of preparation and different physio-chemical conditions exihibits the complexities of structure and properties of these nanocrystals. ^[15]W-type Barium Hexaferrite with cobalt and Nickel substitution in the earlier known studies exhibits slight change in lattice constants ‘a’ and ‘c’ with addition of nickel in prepared barium cobalt hexaferrite powder.^[16]BaNi₂Fe₁₆O₂₇ hexaferrite is known to exhibit soft ferrite nature, while other nickel substitutes barium cobalt ferrites show hard ferrite behavior.^[16]  In the current work, the samples of W-type Cobalt and Nickel substituted calcium hexaferrite have been synthesized by microwave induced sol-gel auto combustion method. The effects of Co²⁺ and Ni²⁺ ions on magnetic and structural properties of calcium W-type hexaferrites have been investigated.

Synthesis

Microwave induced sol–gel auto combustion method is a simple and cost effective way to synthesize nano-scale ferrite material powders. The sol- gel auto combustion synthesis method involved the preparation of sol by dissolving stoichiometric amount of A.R. grade calcium nitrate, iron nitrate, cobalt nitrate, nickel nitrate and urea in deionised water. The solution was then heated at 80⁰ C on a magnetic hot plate with continuous stirring till a thick gel is formed. After evaporation of water the solution became a thick brown colored gel.  The gel was then fired inside the microwave oven. The metal nitrates mixed with urea decomposed to give flammable gases such as NH₃, O₂, and NO respectively. After the point of spontaneous combustion, the solution became a solid which burns at temperatures above 1200 °C. The combustion process yields the material is porous, easily crumbled with voids and loose due to gases escaping during the combustion reaction ^[16]. The powder is then grinded into fine powder using a pestle and mortar. The Microwave induced sol-gel auto combustion technique is a quick process producing very fine nanohexaferrite particles. The synthesized ferrites were put in a Muffle furnace in the crucible and they were sintered at the temperature of 800⁰C for the duration of 4 hours by gradually increasing the temperature of the furnace at the rate of 100⁰C every hour. After sintering the furnace was cooled at the same slow rate. Then the material powdered samples were further grinded for 4 hours duration to fine particles in a mortar and pestle.

Results and Discussions

X-Ray Diffraction

The XRD pattern of sample CaCo_2-xNi_xFe₁₆O₂₇ for concentrations x = 0, 1, 2, were sintered at the temperature of 800^oC as shown in Fig. 1-3. The X-ray diffraction patterns shown in Figures 1-3 were used to determine the structural properties of the synthesized Calcium W-type Hexagonal Ferrite materials. All diffraction patterns correspond to a hexagonal crystal lattice and structure as published in ICDD-#78-0135 and they belong to space group P63/mmc.The XRD analysis reveals presence of W-ferrites(JCPDS No. 780135).

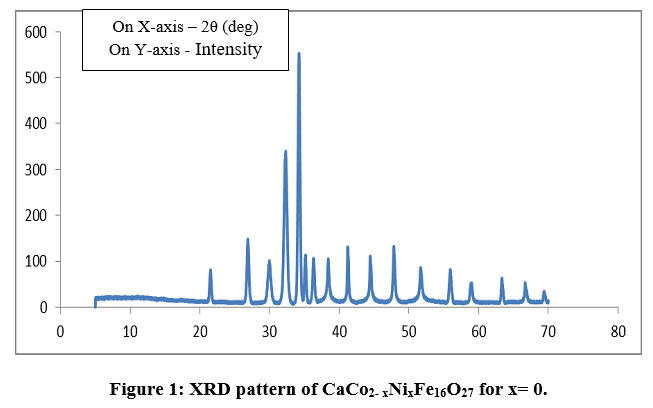

Figure 1: XRD pattern of CaCo2- xNixFe16O27 for x= 0. Click here to View figure

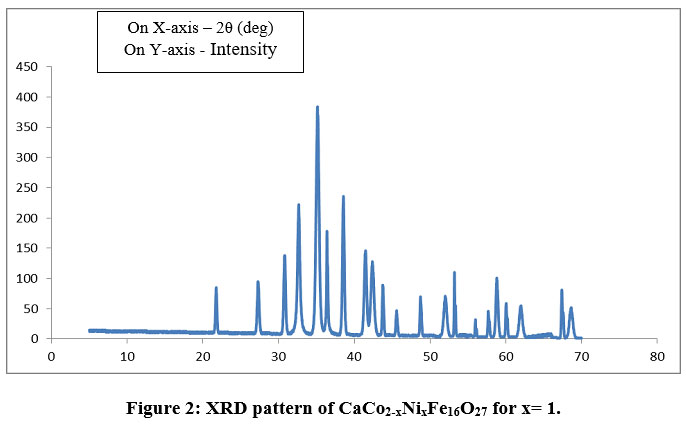

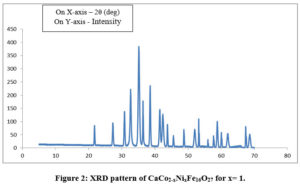

Figure 2: XRD pattern of CaCo2-xNixFe16O27 for x= 1. Click here to View figure

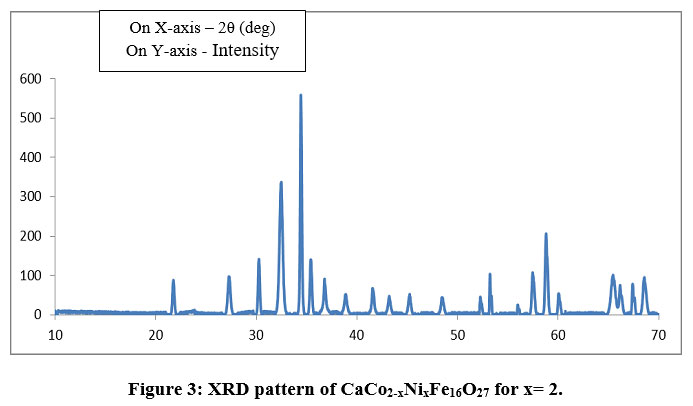

Figure 3: XRD pattern of CaCo2-xNixFe16O27 for x= 2. Click here to View figure

The cell volume and lattice parameters of the W phases are as tabulated in Table 1. The lattice contants ‘a’ and ‘c’ for Co₂W are found to be slightly lower than those for Ni₂W. ²²The cell volume ‘V’ of Co₂W is observed to be slightly lower than that of Ni₂W. This is not the result of differences in the ionic radii of Ni²⁺ and Co²⁺ ions, as Co²⁺ ions have a slightly higher ionic radius at octahedral site (0.88 Å) than Ni²⁺ (0.83 Å).

Concentration	Lattice constant		V=a2c (Å)3	Porosity (%)	D (nm)
	a(Å)	c (Å)
x=0	5.9608	32.8732	1167.6	46	23.19
x=1	5.7893	32.8021	1095.79	44	27.68
x=2	5.7023	32.7210	1062.42	43	48.94



The values of the observed X-ray density (𝜌_𝑥) were found to increase with the value of x, as shown in Table 1. The enhancement in the density of X-rays is due to the enhancement in the molecular weight of Calcium W-type hexagonal ferrite when Co²⁺ cations completely replaces Ni²⁺ cations in the crystal lattice.^18-19

Energy Dispersive X-ray Spectroscopy (EDX)

Figures. 4, 5 and 6 shows the EDX Spectra of CaCo_2-xNi_xFe₁₆O₂₇  for x=0, 1 and 2 respectively giving the evidence for the presence of cobalt, nickel, oxygen, calcium and iron in the stoichiometric  proportion as desired in the composition of the samples prepared.

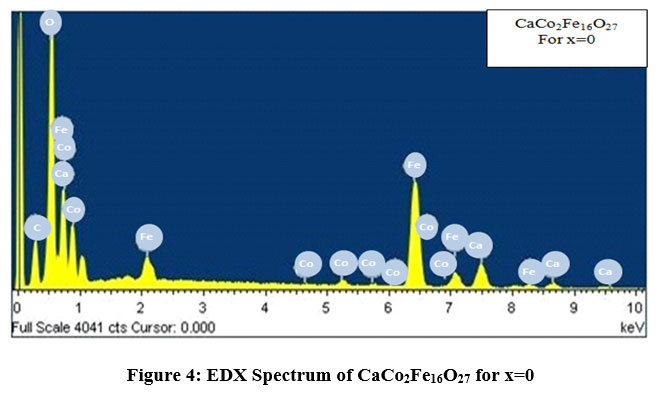

Figure 4: EDX Spectrum of CaCo2Fe16O27 for x=0 Click here to View figure

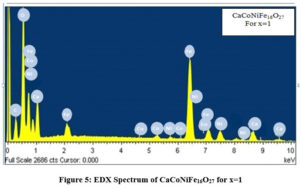

Figure 5: EDX Spectrum of CaCoNiFe16O27 for x=1 Click here to View figure

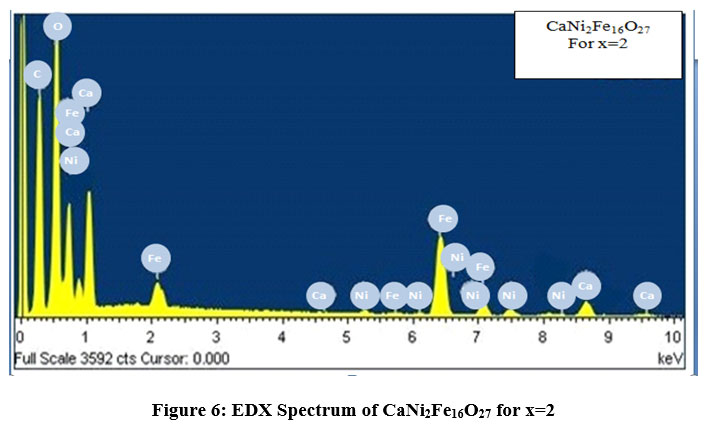

Figure 6: EDX Spectrum of CaNi2Fe16O27 for x=2 Click here to View figure

Morphology

Figure. 7 shows SEM images of CaCo_2-xNi_xFe₁₆O₂₇ for x = 1 sintered at the temperature of 800° C. This representative SEM image reveals granular hexagonal structure mainly composed of regular hexagonal plates having wide distribution of particle size. These hexagonal plates have diameters ranging between 30-50 nm with average grain size of the order of 40 nm. Ca-W hexagonal ferrite has single-domain size of nearly 30 nm ²⁰, hence we can say that the sample consists of particle in multi-domain. The porosity of these particles exhibit relatively low porosity.

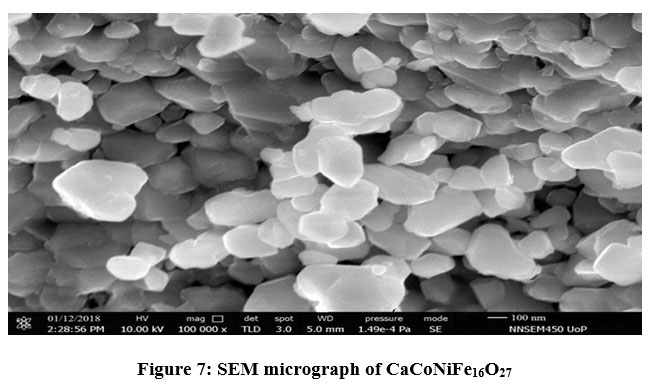

Figure 7: SEM micrograph of CaCoNiFe16O27 Click here to View figure

Transmission electron microscopy (TEM) images of all samples are shown in Figure 8. giving an idea about the particle size and size distribution of Ni and Co substituted Ca-W hexaferrite. The average size of the nanoparticles in the samples were calculated to be 48nm, 47nm and 46 nm for CaCoFe₁₆O₂₇, CaCoNiFe₁₆O₂₇ and CaNi₂Fe₁₆O₂₇ respectively. These TEM micrographs were taken by TEM-CM200 operating at the voltage of 20-200KeV.

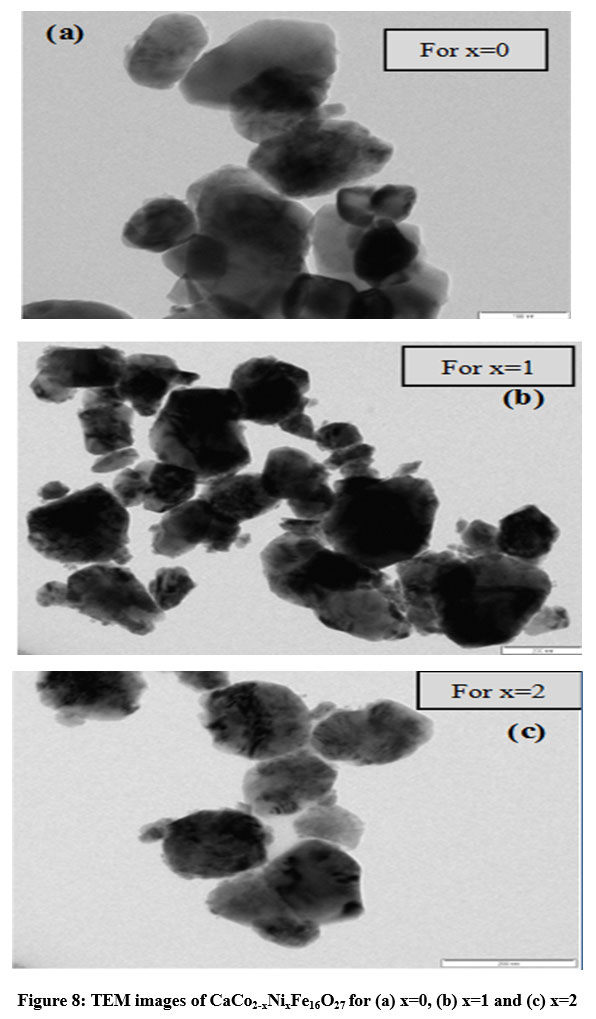

Figure 8: TEM images of CaCo2-xNixFe16O27 for (a) x=0, (b) x=1 and (c) x=2 Click here to View figure

Magnetic Behavior

The Hexagonal ferrite structure consists of closely packed oxygen in the lattice with the cations existing at the octahedral, trigonal bipyramidal and the tetrahedral sites. The ion hopping mechanism between tetrahedral and octahedral sites has a small probability than that for octahedral–octahedral sites. The hopping of ions between tetrahedral– tetrahedral sites does not exists which facilitates the Fe⁺³ ions occuping the tetrahedral sites. If any Fe⁺² ions are developed during the sintering process, then they occupy octahedral sites.²¹

Ca-hexaferrites with Ni²⁺ substitutions show higher saturation magnetization values than that of unsubstituted samples analyzed in this research. Figures 9 & 10 show hysteresis curves of samples at x=0 and x=1 respectively. The increase of the saturation magnetization from 1.12 emu/g for Co₂W to 1.20 emu/g for Ni-W is due to the substitution of Ni²⁺ ions by Co²⁺ ions at spin-up sites ^{21, 22}. The coercivity decreased from 1137 Oe down to 784 Oe as shown in Table 2. This may be correlated with the increase of particle size of the Ca-W phase. The decrease in the coercivity of the sample sintered at 800° C is correlated with phase transformation from hard Ca-W to soft Ca-W Phase with enhanced particle size. This decrease is due to the enhancement of the particle size beyond the critical single domain size as reflected in the SEM image.

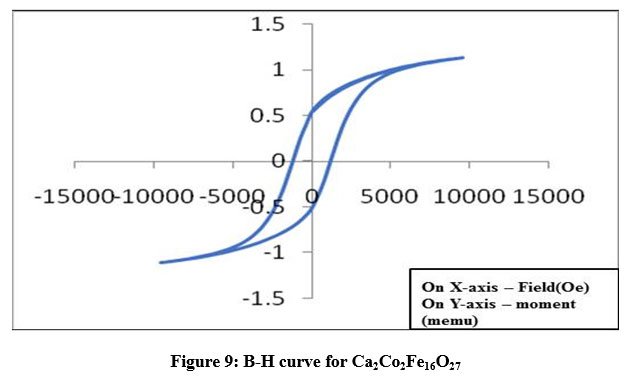

Figure 9: B-H curve for Ca2Co2Fe16O27 Click here to View figure

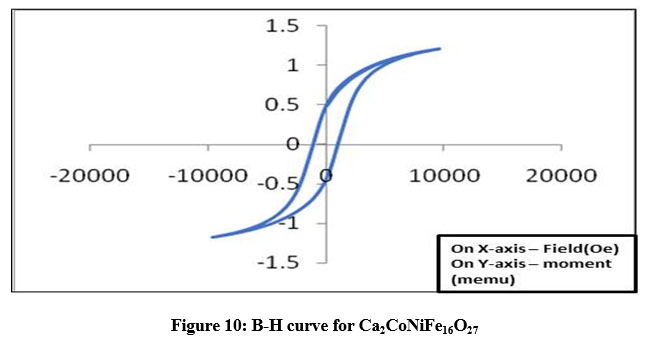

Figure 10: B-H curve for Ca2CoNiFe16O27 Click here to View figure

Table 2: VSM Data Calculations for Ca₂Co_2-xNi_xFe₁₆O₂₇

Concentration	Ms (emu/g)	Mr (emu/g)	Hc (Oe)
x=0	1.12	0.548	1137
x=1	1.20	0.484	784



Conclusion

With microwave induced sol-gel auto combustion route, Ni and Co substituted calcium W-type hexagonal ferrite nano-particles have been effectively synthesized. The XRD data exihibits the presence of single phase W-type hexagonal ferrite. There is a single magnetoplumbite phase as no extra lines were reported in the samples.  The indexed space group for the samples seen is found to be SG: P63/mmc (No. 194).The lattice unit cell dimensions ‘a’ and ‘c’ for Co₂W ferrite synthesized are found to be slightly less as compared to those for Ni₂W. The doping concentrations of Ni and Co are at appropriate stoichiometric ratio depicted in the EDX result. These elements are combined together to form the hexagonal phase of the ferrite material which was confirmed by XRD study.

SEM micrograph shows that the particles have hexagonal-plate structure. The SEM micrograph of the nickel and cobalt doped samples show a consistent grain growth and the samples appear to be mixture of homogenous individual particles. TEM images show that the sample has nano-crystalline nature. The saturation magnetization (Ms) increases with the substitution of Ni ions in the calcium nano-hexaferrite. The enhancement in the Ms is due to the spin up state replacement of Fe⁺³ ions. The value of coercivity (Hc) is found to decrease with Ni substitution due to variation in structure and anisotropy field. The increase in the value of coercivity of hexaferrite can be attributed to the particle size and domain structure.
