Effect of the Intensity of the Acid Rain on the Geotechnical Properties of Soils of Diferent Plasticity

¹Central Soil and Materials Research Station, Olof Palme Marg, N. Delhi - 110 016, India.

²Department of Civil Enginnering Singhania University, Rajasthan, India.

DOI : http://dx.doi.org/10.13005/msri/080210

Acidification of rain is caused by air pollutants like sulfur dioxide and oxides of nitrogen etc. which reduces its pH as low as 4. Although the H+ concentration of acid rain falling for a short duration is very low in comparison to cation exchange capacity of soil yet its effect on the physical, chemical and engineering properties of soil cannot be ignored. Ever growing industrialization/pollution will increase frequency, persistence and intensity of acid rain. This will certainly enhance the rate of leaching of cations from the soil to a great extent. Absorption of H⁺, SO₄^2-, NO^3- and CO₃^2- by the soil particles will alter its physical, chemical and engineering properties. Therefore it is imperative to examine the properties of soils eroded due to acid rain in order to augment understanding of its influence on geotechnical engineering particularly when used in fields, embankment or in earthfill dams. Objective of this study was to find degree of variation in the texture, physico-chemical and the engineering properties of soil of different plasticity when exposed to acid rains having different pH. Soil samples were collected and acidified with varying probable simulated strength of acid rain equivalent to normality 0.005N, 0.01N, 0.02N and 0.04N of H₂SO₄ or HNO₃. The consistency, strength and chemical characteristics of the samples were determined for the soil fraction passing 425 μm sieve. The acidification causes de-flocculation of soil particles which directly affects the consistency as well as strength properties of the soil. The paper presents the observed degree of variation in these properties under varying strengths of acid rain.

Introduction

Environmental Geo-technology is emerging as an interdisciplinary science, aiming at fore-casting, analyzing and solving the geotechnical pro-blems involving the influence of environmental factors.¹ Absorption of gaseous pollutants released during volcanic eruptions and industrial exhausts reduces the pH.² Although the H⁺ content of acid rain falling for a short duration is very low yet its influence on the physical, chemical and engineering properties of soil will be alarming in near future as ever growing industrialization/ pollution will keep on substantially decreasing its pH. The enhanced rate of leaching of cations and absorption of H⁺, SO₄^2-, NO₃^– and CO₃^2- alter these properties.³ It is thus one of the most influential environmental factors which directly affect the properties of soil.⁴ The present study aims at finding the variation in the texture, physico-chemical and the engineering properties of the soils of different plasticity when exposed to acid rain of same concentration. In addition the relative change in the properties of same soil when subjected to acid rain of varying strength has also been studied.

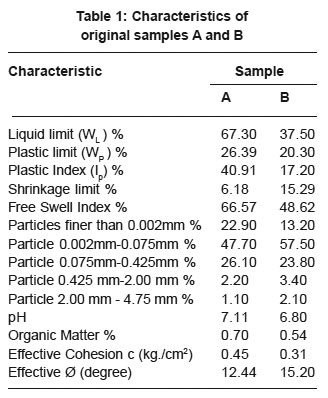

Experimental

Click on image to enlarge

Experimental Methods

1 kg of each soil sample was separately shaken for 8 hours with 1 liter of H₂SO₄ and HNO₃ of 0.005N, 0.01N, 0.02N and 0.04N strengths as detailed in table 2. These samples were then kept undisturbed over night. The treated samples were then filtered and air dried. These samples were then used to find their consistency, strength and chemical properties as per Bureau of Indian Standards.^5-7

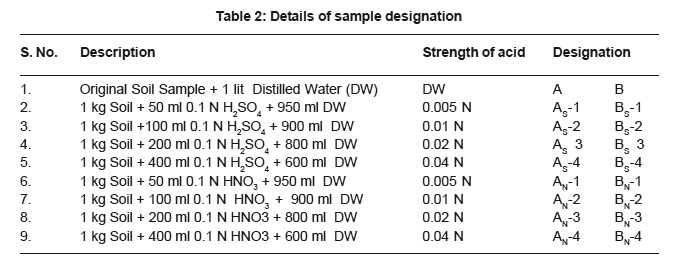

Table 2: Details of sample designation

Click on image to enlarge

Results and Discussion

Soil Texture

The soil samples were analyzed before and after acid treatment using scanning electro microscope (SEM) for finding the texture of the soil crystals. The SEM observation for the original samples A & B are presented in Fig. 1. The SEM observation for Sample A & B treated with 0.005N H₂SO₄ & HNO₃ are presented in Fig. 2. It is observed that angularity of the particles is increased which can be attributed to leaching of the cations and subsequent deflocculation. The degree of variation increases as the strength of acid rain increases.

Figure 1: SEM Observation for original sample A and B

Click on image to enlarge

Figure 2: SEM Observation for Sample A & B treated with 0.005N H₂SO₄ & HNO₃

Click on image to enlarge

Figure 3: SEM Observation for Sample A treated with 0.005N, 0.01N, 0.02N and 0.04N HNO₃

Click on image to enlarge

 Mechanical Analysis

The results of mechanical analysis of the soil samples before and after acid treatment are presented in Table 3. The results clearly show that as intensity of acidification increases the deflocculation of soil particles which predominantly increase the percentage of silt and clay size particles.

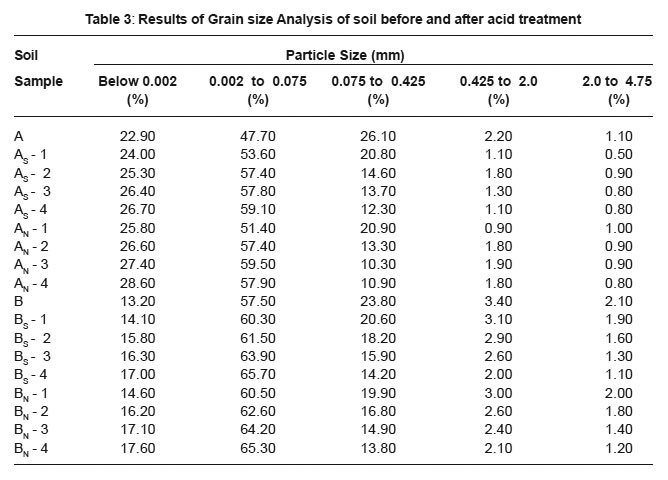

Table 3: Results of Grain size Analysis of soil before and after acid treatment

Click on image to enlarge

Physico-Chemical Properties

On treating the soil samples with different concentrations of H₂SO₄ or HNO₃ the physico-chemical properties of the soil samples got changed. The results are presented in Table 4. The pH of the samples reduced as the concentration of the acid increased. On acid treatment, the organic matter got digested and thereby its percentage reduced.

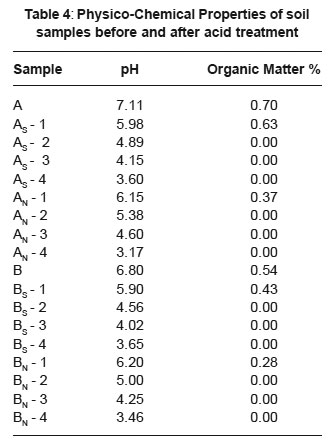

Table 4: Physico-Chemical Properties of soil samples before and after acid treatment

Click on image to enlarge

Consistency Characteristics

The values of Liquid limit (W_L), Plastic limit (W_P), Plastic Index (I_p), Shrinkage limit and Free Swell Index for the soil samples before and after acid treatment are presented in Table 5. The degree of variation in the consistency characteristics of the soil depends on factors like type of soil, electrical charge of exchangeable cations absorbed by soil particles and concentration of cations in soil water.³

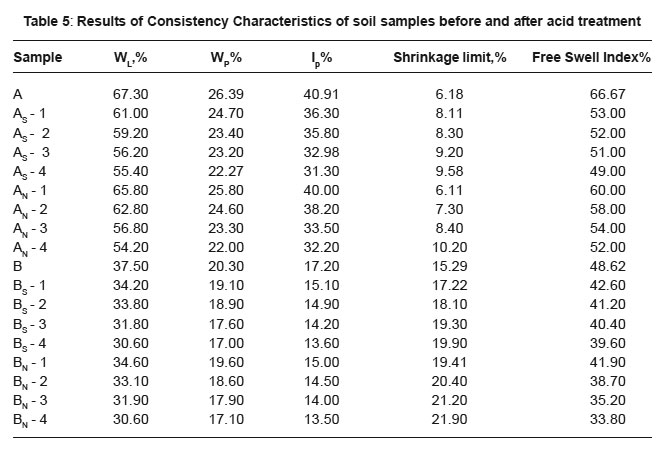

Table 5: Results of Consistency Characteristics of soil samples before and after acid treatment

Click on image to enlarge

Due to the leaching of cations and deflocculation the consistency characteristics of the soil reduced except shrinkage limit. The increase in values of shrinkage limit is attributed to increase in inter particulate distances due to reduction in the forces between soil particles.

Strength Characteristics

The strength characteristics of soil are affected extensively by soil’s internal structure and interaction between soil particles. The strength of soil originates mainly from the soil skeleton and electric attractive force between the electric charges absorbed by the soil particles. The results of the effective cohesion (c’), kg/cm² and Effective angle of internal resistance (Ø’), degree for untreated and acid treated soil samples is presented in Table 6. The values of effective cohesion (c’) and Effective angle of internal resistance (Ø’) are observed to be lesser for acid treated soil samples. This is mainly due to reduction in the electric forces as concentration of exchangeable cations reduced on acid treatment.

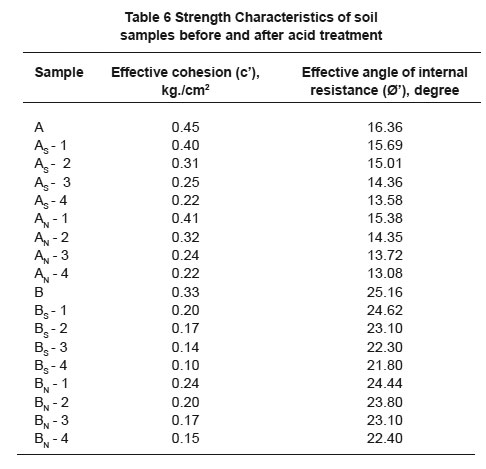

Table 6 Strength Characteristics of soil samples before and after acid treatment

Click on image to enlarge

Further Research

In the present study, an approach to find out the effect of acid rain on soils from Indore and Nagpur has been established. However, the scope of the study is being contemplated to various types of the soils to be collected from different parts of India to establish probable impact of acid rain on geophysical properties. This will help in better understanding of the situations during planning and construction of mega civil engineering structures.

Conclusion

Acid rain results in changes in physico-chemical characteristics of soil due to cations exchange. pH of the soil decreases while the concentration of absorbed H⁺ and SO₄^2- increases. Grain size distribution of the soil will shift towards finer fractions when subjected to acid rain. Acid rain affects the consistency properties of different soils. Leaching of cations will reduce the attractive forces between the soil particles which will lower the overall strength of the soil. The data obtained during the experiments is useful in gauging the damages to the soil that could occur due to the acid rain in future. However the magnitude of the deterioration will depend on persistence and strength of acid rain.

Acknowledgements

The authors extend their sincere thanks to Dr. R.K. Parashar, Associate Prof. NCERT and Mrs. Abha Sharma for valuable suggestions extended by them. Timely help extended by Sh. Devender Singh and Sh. Anil Vashisht of CSMRS are gratefully acknowledged. We also extend our sincere gratitude to all the authors whose publications provided us directional information from time to time.

References

1. Manassero M and Deangeli C, Education in Environmental Geotechnics, Proceedings of Indian Geotechnical Conference, Vol. 2, Allahabad, India, 840–848 (2002).
2. Chandrawanshi C K, Patel V K and Patel K S, Acid Rain in Korba City of India, IJEP 17(11): 656-651 (1997).
3. Kamon Masashi, Ying Changyun and Katsumi Takeshi, Effect of acid rain on physico-chemical and engineering properties of soils, Japanese Geotechnical Society, 37(4): 23-32 (1997).
4. Yamaguchi H, Ui M, Fukuda M and Kuroshima I, Change in environmental properties of soils taking acid rain into consideration, Tsuchi-to-Kiso, 41(6): 47-52 (1993).
5. IS 2720 Part 3 to Part 17 and Part 21 to Part 27, Methods for Testing of Soils.
6. S.P. 36 (Part I) — Bureau of Indian Standards, Compendium of Indian Standards on Soil Engineering – Laboratory Testing of Soils for Civil Engineering Purposes, pp. 23–350 (1987).
7. S. P. 36 (Part II) — Bureau of Indian Standards, Compendium of Indian Standards on Soil Engineering – Field Testing of Soils for Civil Engineering Purposes, pp. 31–250 (1988).
