A Mini Review on Prospects and Challenges of Harnessing Fungi for Concrete-Crack Healing

Rocktotpal Konwarh^1*, Suresh Babu Palanisamy¹ and Pavan Kumar Jogi²

¹Department of Biotechnology, College of Biological and Chemical Engineering, Addis Ababa Science and Technology University, Akaki Kality, Addis Ababa-16417, Ethiopia

²Department of Civil Engineering, College of Architecture and Civil Engineering, Addis Ababa Science and Technology University, Akaki Kality, Addis Ababa-16417, Ethiopia

Corresponding Author Email: rock1311@gmail.com

DOI : http://dx.doi.org/10.13005/msri/170204

ABSTRACT:

There has been a continual upsurge on research pertaining to bio-based/ microbial healing of cracks in concrete (a pre-requisite component when it comes to construction design). Albeit, the application of bacteria in this realm has been documented widely over the years, howbeit, delving into fungus based self-healing under the deleterious ambience of concrete with oxygen and nutrient limitation, moisture deficit and high alkalinity has captured recent research impetus. In this context, we have tried to mine the current contextual information to gauge whether research on fungal-based self-healing concrete could be worthwhile. Recent systematic screening encompassing the application of genetically engineered strains, attests the profound untapped potential of specific fungal species in assisting sustainable self-healing to ensure resilient infrastructure. Known for their adaptability under a plethora of environmental stress-conditions and architecturally endowed with large surface-active biomass, fungi can display both biomineralization and organomineralization, leading to rapid and profuse precipitation of CaCO₃ (a befitting concrete-filler) for prospective sealing of cracks, even of large width, plausibly without any negative trade-off with respect to concrete’s strength. This article is thus compiled to mirror the various prospects, practical hitches and future direction of research in using fungi for concrete crack healing.

Click on image to enlarge

KEYWORDS: Biomineralization; Cracks; Concrete; Fungi; Genetically Engineered Strains; Organomineralization; Precipitation; Resilient Infrastructure; Self-Healing

Copy the following to cite this article: Konwarh R, Palanisamy S. B, Jogi P. K. A Mini Review on Prospects and Challenges of Harnessing Fungi for Concrete-Crack Healing. Mat. Sci. Res. India; 17(2).

Copy the following to cite this URL: Konwarh R, Palanisamy S. B, Jogi P. K. A Mini Review on Prospects and Challenges of Harnessing Fungi for Concrete-Crack Healing. Mat. Sci. Res. India; 17(2). Available from: https://bit.ly/31YiUyD

Introduction

In the domain of civil engineering, the structural failure of concrete, an indispensable constituent when it comes to construction design, remains a pertinent issue.¹ Often, the strength and integrity of the internal structure of concrete is diminished by cracks of various nature that tend to propagate and augment with time.  Contaminant ingress like rapid chloride penetration and infiltration of atmospheric water affect the durability of concrete and leads to subsequent corrosion of steel in reinforced concrete.¹ The hunt for sustainable and durable concrete, less prone to cracking has seeded the concept and catalysed the research in ‘self-healing’.^2,3 Amongst others, precipitation of calcium carbonate, admixture-mediated continual hydration, use of shape-memory materials and application of encapsulated/immobilized biobased healing agents have been reported in this context.⁴

On a note of pertinence, microbial healing of concrete-cracks has captured commendable research thrust over the years.^{3, 5-7} The bio-based healing strategy, relying on appropriately selected mineral-precipitating microbes may be projected as a safe, pollution-free, sustainable way to address the afore-stated engineering complicacy. Microbe-mediated biomineralization leads to production of calcium carbonate (CaCO₃), the most apposite concrete-filler. A commendable micro-crack sealing potency, durable physicochemical interactions between crack and filler, desirable compatibility with the constituents of the concrete as well as intended thermal expansion have conferred a special niche to the microbial healing strategy in comparison to other approaches.^5-8 However, it is pertinent to note that albeit, christened as ‘healing based on micro-organisms’ (an umbrella-term), it is the bacterial systems that have captured the lion’s share as far as the research reports and patents are concerned till date.^9-25 Bacterial-self healing relies on availability of nutrients and metabolic conversion to precipitate calcium carbonate, creating an optimal extracellular mineral phase-abundant micro-ambience to seal cracks. Electronegative charge in bacterial cell walls and large active surface area facilitate the attraction of calcium cations (Ca²⁺⁾ from the cementitious matrix and consequently results in calcium carbonate precipitation, which could be equal to or even greater than the cellular weight.  It is critical to note that the ambient parameters dictate the efficacy of the bacterial precipitation. Culturing and handling of bacteria in a laboratory setting is not quite complex. Availability of various selective media has facilitated the collection and isolation of bacteria, suitable for self-healing protocol.  A range of bacteria, with special thrust on the various species of the genus Bacillus, has been assessed for the purpose. The various routes/approaches (along with the major challenges) pertaining to bacterial assisted self-healing are highlighted in Table 1.  On a pertinent note, Jin et al. (2018)²⁶ had assessed the various practical snags in resorting to bacterial self-healing approach to seal concrete-cracks. Amongst others, a) diminished bacterial survival vis-à-vis deleterious concrete-ambience, b) negative trade-off with respect to the compressive strength of concrete as a consequence of incorporation of healing agents- bacterial spores and nutrients, besides c) little success in using bacterial cells to mediate accelerated CaCO₃ precipitation for sealing wide cracks demand special mention (although, scientific delving has been underway to address these issues). In this backdrop, of late, researchers have started to assess another class of micro-organisms, namely fungi for prospective biohealing applications.^27,28 However, we would like to emphasize upon the fact that the number of documents, reflecting the actual use of fungi for concrete healing, is extremely low as of now.  Nevertheless, the content in this article is streamlined towards understanding the justification, plausibility and expectations when resorting to fungal based crack-sealing in concretes. This write up is compiled as an attempt to gauge the potential of fungi for prospective bio-healing of concretes.

Is Research on Fungi-Based Self-Healing Concrete Worthwhile? – Mining the Contextual Information

Fungus represents an economically important class of micro-organisms that find applications across multiple agricultural, industrial and biomedical sectors.^29-31 It would be prudent to mine some background information and delve into the milieu that is expected to propel research on fungi-based self-healing concrete, as highlighted underneath.

Robustness and Adaptability of Fungi to a Gamut of Environmental Extremes/Stress

Survival-success stories of fungi across various latitudes and longitudes of this globe (including the freezing polar caps, scorching Sahara, hypersaline Dead Sea as well as ~5000 m deep sea sediments³³ are some of the awe-inspiring biological revelations. Few fungal species (e.g., Paecillomyces lilacimus and Chrysosporium spp.) can proliferate well at even pH-values of 7.5–11.0.³⁴ Irrespective of extreme external pH, maintenance of an internal cellular pH at close to neutrality is facilitated by the presence of an osmotic barrier in the fungal cells.  Studies have also attested the existence of fungi (survival, possibly facilitated by adept scavenging of nutrients from air and rain-water) as a pertinent constituent of epilithic and endolithic microbial communities in limestone, sandstone, granite, marble and gypsum and even rocks in Antarctica.³⁵ Sporulation is one of the commonly adopted fungal tactics to withstand extremes of nutrient scarcity, temperature, pH, pressure and irradiation³³. In this milieu, probing into the prospects of using fungi under the deleterious ambient status of concrete with oxygen and nutrient limitation, moisture deficit and high alkalinity seems to be an interesting proposition. It is envisaged that this survival potency of fungi under environmental stress may aid in long-term self-healing of the concrete cracks.

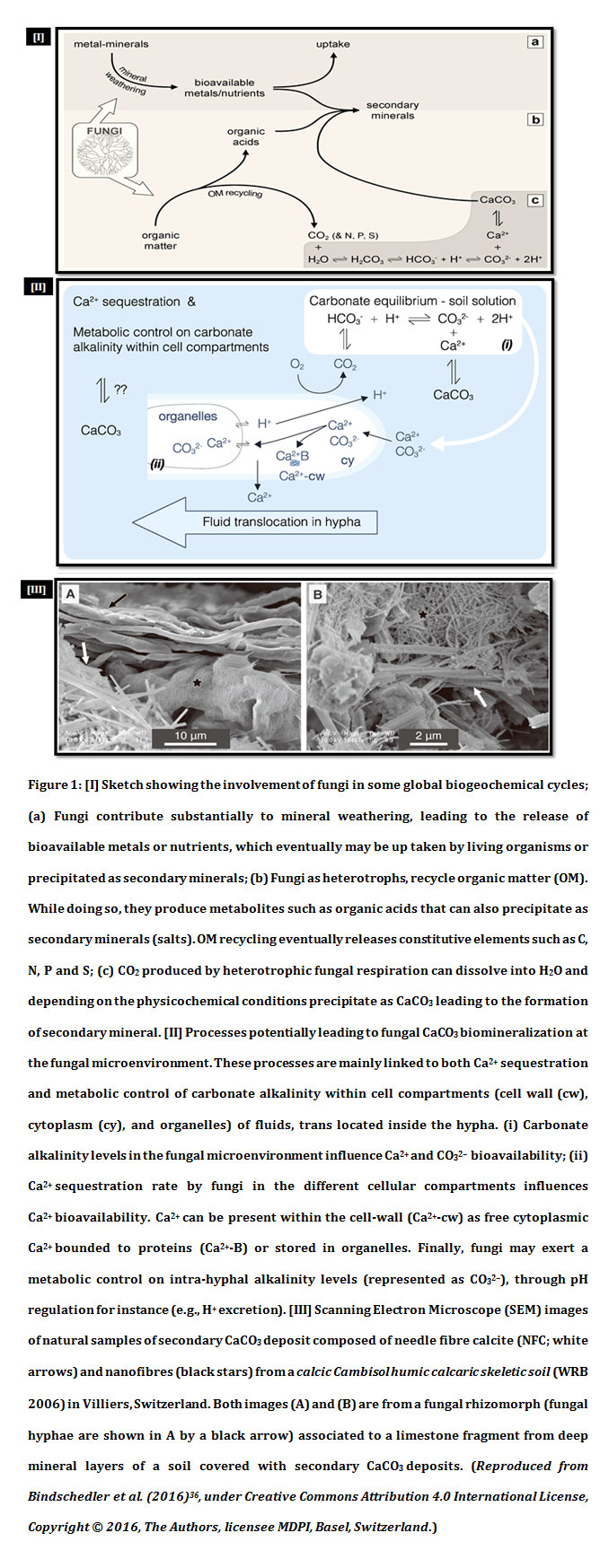

Fungi-Mediated Calcium Mineralization: Exemplification and Plausibility in Harsh Concrete-Ambience to Seal Wide Cracks Rapidly

Fungal Metabolic Activities Promote Biomineralization of Calcite

Induced biomineralization marks bacterial-assisted mineral precipitation. On the other hand, fungi are capable of adroitly employing both induced biomineralization and organomineralization strategies to precipitate calcium carbonate. Figure 1 [I] depicts the participatory role of fungi in some global biogeochemical networks while Figure 1 [II] is illustrative of various routes, directed towards CaCO₃ biomineralization at the fungal micro-ambience. Active pumping out of calcium ions or complexation with cytoplasmic proteins ensure the maintenance of stringent calcium ion gradient, critical for apical growth in fungi.³⁶ Relevantly, various fungal metabolic activities (e.g., nitrate assimilation, urea degradation, organic acid oxidation etc.)³⁶ augment the alkalinity of water that facilitates calcium carbonate biomineralization. As a point of pertinence, Bindschedler et al. (2016)³⁶ had resorted to scanning electron microscopic imaging (Figure 1 [III])  to probe into the fungi mediated secondary CaCO₃ deposition in natural environment.

Click on image to enlarge

Architectural Shape and Make

Availability of a number of nucleation sites and skeletal assistance for calcium carbonate precipitates, conferred by the branched architecture and filamentous morphology of fungi is a clear advantage over the minute bacterial cells with simpler shape. Excellent biosorption attribute of chitinous (chitin:  a nitrogen-rich polysaccharide) cell walls of fungi has conferred a special niche to this microbial group in metal-uptake studies, biosynthesis of nanobiomaterials and antimicrobial assessment of nanomaterials.³⁷ It is envisaged that calcite may nucleate and eventually grow on fungal hyphae due to the fact that chitin has the potency to drop the activation energy barrier, required for nucleus formation.³⁸ Consequently, calcium cations on interacting with soluble CO₃^2- is expected to yield CaCO₃ deposits on fungal hyphae.

Potency of Organomineralization for Calcium Carbonate Precipitation

Dead and inactive fungal hyphae may also act as substrate since biosorption operates in a manner, free from the dictates of the metabolic status of the fungi.^{36, 38} Breakdown of fungal filaments is expected to release the crystals of CaCO_3, thereby, endowing additional calcite precipitation sites.

Evidence of Calcium Mineral Precipitation in Low-Nutrient Environment

Burford et al.(2006)³⁹ had resorted to X-ray diffraction study of crystalline precipitates on the hyphae of Serpula himantioides and a Cephalotrichum sp. (a limestone fungal isolate). The precipitates of calcite and little whewellite on S. himantioides hyphae and calcite or of a mixture of calcite and weddellite on the limestone isolate hyphae attested the deposition of calcite and secondary calcium minerals on fungal substratum even in a nutrient-deficit environment.

Precipitation of Oxalates and Possible Defensive Strategy to Ameliorate Metal-Stress

Release of oxalic acid by the filaments of few fungal species (Aspergillus niger,⁴⁰ S. himantoides⁴¹) and subsequent precipitation of calcium oxalate in CaCO₃ abundant surrounding is an interesting observation. This is pertinent in the sense that subsequent oxalate-oxidation and fungal metabolic activity-mediated release of CO₂ adds to the carbonate build up in the vicinity and is siphoned towards CaCO₃ precipitation. Precipitation of metallic minerals onto fungal hyphae has been proposed as a pivotal mechanism to explain their survival and multiplication in apparently metal-polluted areas.^36.42 In other words, calcium carbonate precipitation could be viewed as a self-protective strategy of fungi to avoid metal-stress. Having said that, concrete, representing a calcium-rich material could create stress conditions in the context of possible calcium cytotoxicity and altered osmotic pressure, thereby, raising the possibility of the desired precipitation in concrete crack-healing.

In vitro Demonstration of Rapid and Copious Precipitation

Accelerated and copious calcium carbonate precipitation of fungi has been documented previously. The following two exemplary reports vouch for the following:

(a) Appearance of immature calcite crystals post 12 h of exposure of aqueous calcium ions to two different fungal species, followed by maturation to smooth structures (plate-shaped crystals for Trichothecium sp. and ring-like superstructures for Fusarium oxysporum) after 3 days.⁴³

(b) Profuse CaCO₃ crystallization post 21 days of incubation of Serpula himantioides in a micro-niche of carboniferous limestone at 25 ^oC.³⁹ Pertinently, both living and dead fungal biomass were effective in the crystallization.

Widening the Possibility with Genetically Engineered Strains

Recent endeavours have also projected the prospects of genetically engineered fungi for self-healing of concrete. The transcription factor, PacC mediates fungal response to the pH levels of the surrounding⁴⁴. Trimming the C-terminal region of the pacC regulatory gene leads to generation of gain-of-function pacC^c mutations resulting in alkalinity mimicry via circumventing the requisite of external pH cues and sustained activation of alkaline-responsive genes with super-repression of acid-responsive genes. Such molecular level engineering elicits an ambient-pH independent gene expression-pattern in the mutants analogous to the one exhibited in wild type strains when cultured under alkaline pH, thereby, raising the prospects of the former in self-healing applications.

Considering the afore-stated, it is expected that appropriately selected species of fungi would be able to thwart the challenges of the harsh environment of concrete and adroitly be capable of mediating copious CaCO₃ precipitation at a rapid pace to seal even larger cracks.

Can Fungal Self-Healing Concrete Meet The Requisites Of Compressive Strength?

Self-healing concrete structures would find their real sustainable applications when the compressive strength of the concrete is not compromised with, amongst other factors. It may be argued that comparatively larger size of fungal spores (than the bacterial counterparts) would be a serious practical snag.  Use of such large spore-containing immobilization matrix or capsules is expected to drop the compressive strength tremendously. Incorporation of excess healing agents would imply appearance of considerable voids post ripping apart of the capsules. Porous-carrier mediated substitution of definite quota of sand and gravel, the possible dispersal of un-encapsulated nutrients in the vicinity as well as inadequate interaction among the concrete matrix and healing agents are expected to contribute to the probable decline in compressive strength. Pertinently, ~24% augmentation of compressive strength of mortar specimen post self-healing of cracks was reported on employing immobilized S. pasteurii on porous glass beads.⁴⁵ The point here is the absolute requisite of an optimization of the size-shape-surface chemistry-amount-distribution accord of the fungal based healing agents to ensure sealing of cracks without negatively affecting the compressive strength.

Anticipated Hallmarks of an Ideal Fungal Species for Self-Healing Applications

Based on the afore-stated, a few stringent parameters should be appropriately addressed while selecting fungal species for the proposed application of concrete-self healing.

a) Non-pathogenicity is a prime requisite. Accidental release of spores may prove detrimental to the nearby crops/plants if the latter serve as hosts for germination and proliferation of the former. Although fungal diseases are more apparent in plants, it, however, does not imply that the animal world (particularly the mammals including humans) is completely free from fungal assaults. Appropriate carrier materials must be assessed to prevent unintended consequences.

b) Amenability for inclusion and preservation of long-term viability within the harsh ambience of the concrete infrastructure. The fungal species must be able to withstand mechanical stress while mixing as well as exhibit sustained viability under high-pH conditions of the concrete. During the occurrence of cracks and subsequent entry of water and oxygen, it is expected that germination of the dormant fungal spores, growth and consequent calcium mineral precipitation would lead to in situ healing of cracks at a rapid pace. Post filling of cracks and recreation of stress-ambience, the fungal species is expected to undergo sporulation again. In this regard, alkaliphilic filamentous spore-forming fungi seem to be good option.

(c) As mentioned in the preceding section, genetically manipulated strains have provided a better platform to understand the prospects of using fungi for self-healing applications. Availability of the genomic-information of the selected fungus at the public domain is expected to facilitate genetic alterations to amplify its potency for rapid and sustainable crack repair. Well comprehended genetics and availability of wide range of mutants (as in the case of Trichoderma reesei and Aspergillus nidulans^{46, 47}) with engineered metabolic pathways could be instrumental in this realm,

Recent Exemplary Endeavours

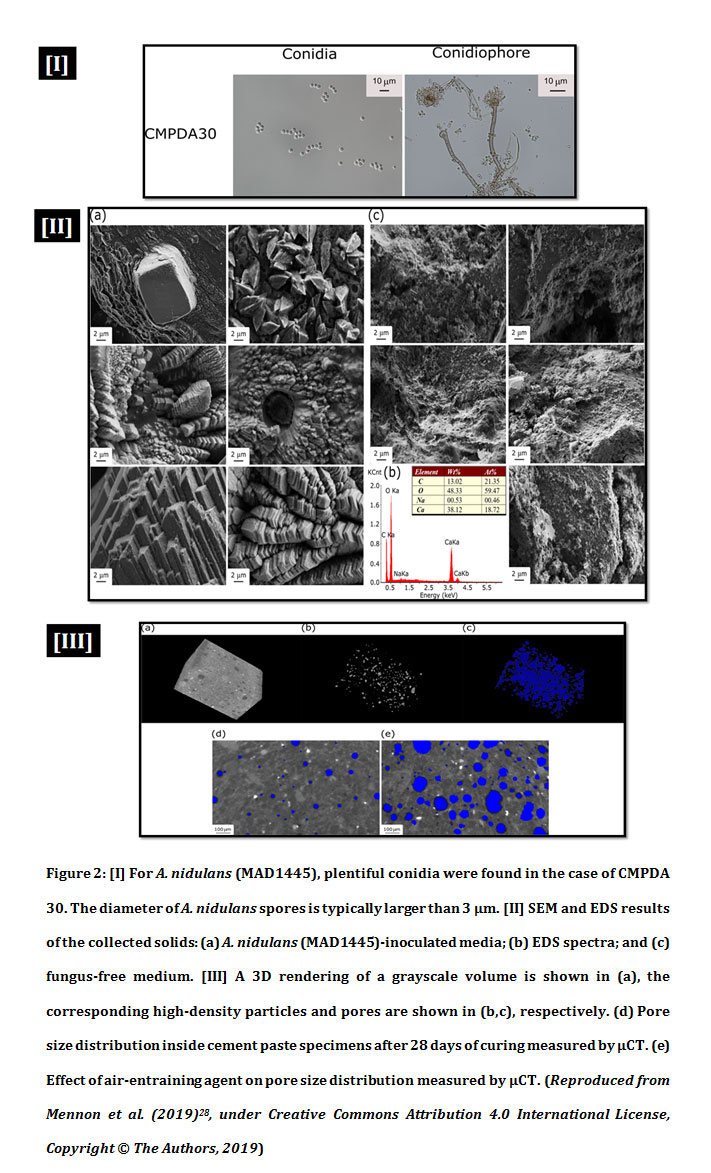

Recently, Jin and colleagues²⁶ had advocated the exploitation of fungi in the domain of crack-sealing in concrete although, Žáková  et al. (2019)’s report evinced that Bacillus pseudofirmus (a bacterial species) had better edge than T. reesei (a fungus) when explored for filling pores and microcracks on cylindrical concrete specimens (diameter: 55 mm and height: 5 mm).⁴⁸ However, as noted in the preceding sections, a number of fungal species may be bracketed together with the potency to promote calcium mineralization and other desirable facets for prospective self-healing applications. Amongst others, a recent report on the exploitation of a urease-positive fungal strain, Penicillium chrysogenum CS1 for biocementation of sand in column and documentation of compressive strength as high as 1800 kPa for the biostone, generated as a consequence of fungal mycelia mediated cementing of the sand granules, merit special mention.⁴⁹ Similarly, Martuscelli et al. (2020)’s investigation had testified the CaCO₃ biomineralization potential of a number of urease-positive fungal strains (Cladosporium herbarum, Cladosporium angustiherbarum and Penicillium brevicompactum), isolated from concrete constructions at different sites in Guimarães, Portugal for application in biocementation strategies.⁵⁰

At this juncture, it is crucial to mention that only recently, research has been directed towards systematic endeavouring to screen various fungal species vis-a-vis concrete-crack sealing potency.²⁷ Amongst others, researchers²⁷ had assessed the prospects of T. reesei (ATCC13631) and A. nidulans (ATCC38163), both procured from American Type Culture Collection (ATCC) apart from four other fungal strains, Cadophora interclivum (BAG4), Umbeliopsis dimorpha (PP16-P60), Acidomelania panicicola (8D), and Pseudophialophora magnispora (CM14-RG38), isolated from the roots of plants, harboured in nutrient deficit soils. For screening, post overlaying of fungal growth medium onto cured concrete plate, the researchers had aseptically placed mycelial discs at the plate center. Dissolution of Ca(OH)₂ from concrete  resulted in shift of pH values towards highly alkaline side (from 6.5 to 13.0). Interestingly, in spite the dramatic pH modulation, germination of the T. reesei (ATCC13631) spores into hyphal mycelium and consequent growth were documented, irrespective of the presence or absence of concrete. The other species failed to show similar response. Calcite-precipitation on the fungal hyphae was corroborated by X-ray diffractometric (XRD) analysis and scanning electron microscopic (SEM) imaging. The researchers forwarded that T. reesei could be a suitable candidate for bio-based self-healing in concrete.

On the other hand, it is pertinent to note that A. nidulans represents one among the filamentous fungi, amenable for easy gene manipulation. In this backdrop, three alkalinity-mimicking mutants of A. nidulans, i.e., MAD1445, MAD0305, and MAD0306, apart from five wild-type strains (placed in the Biosafety Level 1)- Rhizopus oryzae (ATCC22961), Phanerochaete chrysosporium (ATCC24725), A. nidulans (ATCC38163), A. terreus (ATCC1012), and A. oryzae (ATCC1011); as well as Saccharomyces cerevisiae (a non-filamentous, single-celled fungus) were assessed for their potential in self-healing applications.²⁸ Gene replacement protocol was adroitly employed to obtain the alkalinity-mimicking mutations (alleles pacC14 and pacC202). Similar to previous observation, leaching of Ca(OH)₂ was associated with a notable pH increase. With the exception of A. nidulans (MAD1445), all other test strains failed to grow under such high alkaline conditions. Abundant conidia were noted for A. nidulans (MAD1445) for CMPDA 30 medium (Figure 2 (I)). XRD, SEM-EDS (Figure 2 (II)) and TEM analysis attested the precipitation of highly crystalline calcite.  μCT characterization of microstructure, as shown in Figure 2 (III) vouched for the fact that air-entraining agents may be employed to yield sufficient extra air bubbles in concrete matrix to shelter the healing agents. At this juncture, it is prudent to mention that prior to application in concrete structures, delving into the immediate and long-term unintended consequences of pacC mutations of A. nidulans on humans as well as the environment is prerequisite as recent reports have indicated linkage between A. nidulans pathogenicity and features under PacC-control.⁵¹

Click on image to enlarge

The researchers in both these studies^27,28 did not delve into the modulations in the physicochemical attributes of concrete including strength, carbonation resistance etc. in the presence of fungal healing agents.  Furthermore, it is crucial to note that the amount of the mineral crystals observed in these studies was meagre, as reported by the authors. Thus, there lies an absolute necessity of optimization-study pertaining to various factors including temperature, fungal spore concentration, fungal-growth medium composition and other additives. Nevertheless, these studies have surely set the platform for further research.

Future Direction and Conclusion

Post perusal of the afore-stated sections, one may easily perceive that there lies untapped potential of fungi in assisting long-term/sustainable self-healing to ensure resilient infrastructure. The adaptability of fungi to a plethora of environmental stress including water-deficit, nutrient scarcity and high alkalinity would permit appropriately selected (filamentous, spore-forming, alkaliphilic species being the preferred candidates) fungi to mediate biogenic crack repair in concrete via biomineralization or organomineralization strategies. However, caution should be taken to ensure that the selected fungal strains or/and their spores should not be hazardous to human health and must be amenable for inclusion into infrastructure. In this context, myco-informatics and genetic engineering could play an important role in elucidation of genetic make-up and plausible genetic manipulation to augment the fungal adaptability under stress conditions and potential for rapid mineralization. Optimization in terms of loading percent of the healing agents (fungal spores and nutrients) and selection of appropriate carrier materials is prerequisite to avoid negative infliction on concrete strength. Furthermore, deeper insight at the microscopic and molecular levels would open up new portals to comprehend the mechanisms, underpinning the fungus-mediated crystal nucleation and eventual growth that would permit the shape-size tuning of the precipitated minerals. Microscopic assessment of the interface at the concrete crack and the fungal precipitates as well as information related to the bond coherence would be critical to prevent future cracks. On the other hand, numerical simulation studies on the dictates of design-parameters over pace and quality of crack-sealing could reduce expenses in terms of resources/materials and time. In the backdrop of comparative ease in acquiring, handling and culturing fungi in large quantities, and simpler nutritional needs (many species, being oligotrophic) in contrast to bacterial-systems, the cost of fungal based self-healing concrete is expected to be low. However, commenting on the life-cycle cost of this strategy would be an imbalanced projection at this moment as current endeavours (highlighted in the preceding sections) attest only the ‘proof of concept’ status. Understanding the fungi-mediated CaCO₃ based precipitation could open up research in the domain of heavy metal mitigation, carbon sequestration as well as augmented oil recovery. The field is still in its incipient stage and thus calls for greater digging for the unmasking of an economically feasible self-healing strategy based on fungi.

Acknowledgement

A bouquet of gratitude is extended to all the researchers working at the interface of material science and life science, as exemplified by few of the works cited in this article, striving to ensure a sustainable growth and development.

Funding Source

The authors did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors while compiling this article.

Conflict of Interest

The authors declare that there is no conflict of interests regarding the publication of this article.

References

1. R.D. Hooton, Future directions for design, specification, testing, and construction of durable concrete structures. Cement Concrete Res. 124, 105827 (2019). https://doi.org/10.1016/j.cemconres.2019.105827
2. K. Vijay, M. Murmu, S.V. Deo, Bacteria based self healing concrete–A review. Constr. Build. Mater. 152, 1008-1014 (2017). https://doi.org/10.1016/j.conbuildmat.2017.07.040
3. A. Sidiq, R. Gravina, F. Giustozzi, Is concrete healing really efficient? A review. Constr. Build. Mater. 205, 257-273 (2019). https://doi.org/10.1016/j.conbuildmat.2019.02.002
4. S.S. Lucas, C. Moxham, E. Tziviloglou, H. Jonkers, Study of self-healing properties in concrete with bacteria encapsulated in expanded clay. Sci. Technol. Mater. 30, 93-98 (2018). https://doi.org/10.1016/j.stmat.2018.11.006
5. S.K. Ramachandran, V. Ramakrishnan, S.S. Bang, Remediation of concrete using micro-organisms. ACI Mater. J. 98, 3–9 (2001).
6. M. Seifan, A. Samani, A. Berenjian, Bioconcrete: next generation of self healing concrete, Appl. Microbiol. Biotechnol. 100 (2016) 2591–2602. doi: 10.1007/s00253-016-7316-z.
7. J. Wang, Y.C. Ersan, N. Boon, N. De Belie, Application of microorganisms in concrete: A promising sustainable strategy to improve concrete durability, Appl. Microbiol. Biotechnol. 100, 2993–3007(2016). doi: 10.1007/s00253-016-7370-6
8. H.M. Jonkers, A. Thijssen, G. Muyzer, O. Copuroglu, E. Schlangen, Application of bacteria as self-healing agent for the development of sustainable concrete. Ecol. Eng. 36, 230–235(2010). doi: 10.1016/j.ecoleng.2008.12.036
9. V. Wiktor, H.M. Jonkers, Quantification of crack-healing in novel bacteria-based self-healing concrete. Cement Concrete Comp. 33, 763–770 (2011). https://doi.org/10.1016/j.cemconcomp.2011.03.012
10. V. Wiktor, H.M. Jonkers, Field performance of bacteria-based repair system: Pilot study in a parking garage. Case Stud. Constr. Mater. 2, 11–17 (2015). https://doi.org/10.1016/j.cscm.2014.12.004
11. J. Wang, J. Dewanckele, V. Cnudde, S. Van Vlierberghe, W. Verstraete, N. De Belite, X-ray computed tomography proof of bacteria-based self-healing in concrete. Cem. Concr. Compos. 53, 289–304 (2014). https://doi.org/10.1016/j.cemconcomp.2014.07.014
12. N. De Belie, J. Wang, Z.B. Bundur, K. Paine, Bacteria-based concrete in eco-efficient repair and rehabilitation of concrete infrastructures, in: F. Pacheco-Torgal, R. Melchers, N. de Belie, X. Shi, K. Van Tittelboom, A. Saez Perez (Eds.), Woodhead Publishing: Duxford, UK, pp. 531–567 (2017).
13. B. Jeong, E.H. Jho, S.H. Kim, K. Nam, Effect of calcium organic additives on the self-healing of concrete microcracks in the presence of a new isolate Bacillus sp. BY1. J. Mater. Civ. Eng. 31, 04019227 (2019). DOI: 10.1061/(ASCE)MT.1943-5533.0002711
14. Y. Su, J. Feng, P. Jin, C. Qian, Influence of bacterial self-healing agent on early age performance of cement-based materials. Constr. Build. Mater. 218, 224–234 (2019). https://doi.org/10.1016/j.conbuildmat.2019.05.077
15. N. Shaheen, R.A. Khushnood, W. Khaliq, H. Murtaza, R. Iqbal, M.H. Khan, Synthesis and characterization of bio-immobilized nano/micro inert and reactive additives for feasibility investigation in self-healing concrete. Constr. Build. Mater. 226, 492–506 (2019). https://doi.org/10.1016/j.conbuildmat.2019.07.202
16. J. Zhang, C. Zhao, A. Zhou, C. Yang, L. Zhao, Z. Li, Aragonite formation induced by open cultures of microbial consortia to heal cracks in concrete: Insights into healing mechanisms and crystal polymorphs. Constr. Build. Mater. 224, 815–822 (2019) https://doi.org/10.1016/j.conbuildmat.2019.07.129
17. M. Abdulkareem, F. Ayeronfe, M.Z.A. Majid, A.R.M. Sam, J.H.J. Kim, Evaluation of effects of multi-varied atmospheric curing conditions on compressive strength of bacterial (Bacillus subtilis) cement mortar. Constr. Build. Mater.  218, 1–7 (2019). https://doi.org/10.1016/j.conbuildmat.2019.05.119
18. B. Tayebani, D. Mostofinejad, Self-healing bacterial mortar with improved chloride permeability and electrical resistance. Constr. Build. Mater.  208, 75–86 (2019). https://doi.org/10.1016/j.conbuildmat.2019.02.172
19. S. Han, E.K. Choi, W. Park, C. Yi, N. Chung, Effectiveness of expanded clay as a bacteria carrier for self‑healing concrete. Appl. Biol. Chem. 62, 19 (2019). https://doi.org/10.1186/s13765-019-0426-4
20. H. Xu, J. Lian, M. Gao, D. Fu, Y. Yan, Self-healing concrete using rubber particles to immobilize bacterial spores. Mater. 12, 2313 (2019). doi:10.3390/ma12142313
21. W. Pungrasmi, J. Intarasoontron, P. Jongvivatsakul, S. Likitlersuang, Evaluation of microencapsulation techniques for MICP bacterial spores applied in self-healing concrete. Sci. Rep. 9, 12484 (2019). https://doi.org/10.1038/s41598-019-49002-6
22. Y. Su, J. Feng, Q. Zhan, Y. Zhang, C. Qian, Non-ureolytic microbial self-repairing concrete for low temperature environment. Smart Mater. Struct. 28, 075041 (12pp) (2019) https://doi.org/10.1088/1361-665X/ab2012
23. S. Basha, L.K. Lingamgunta, J. Kannali, S.K. Gajula, R. Bandikari, S. Dasari, V. Dalavai, P. Chinthala, P.B. Gundala, P. Kutagolla, V.K. Balaji,  Subsurface endospore-forming bacteria possess bio-sealant properties. Sci. Rep. 8, 6448 (2018). DOI:10.1038/s41598-018-24730-3
24. A.C. Ganesh, M. Muthukannan, R. Malathy, C.R. Babu, An experimental study on effects of bacterial strain combination in fibre concrete and self-healing efficiency. KSCE J. Civil Eng. 23, 4368-4377 (2019). DOI 10.1007/s12205-019-1661-2
25. S. Tiwari, S. Pal, R. Puria, V. Nain, R. P. Pathak, Microbial crack healing and mechanical strength of light weight bacterial concrete. IJCIET, 9, 721–731 (2018) http://www.iaeme.com/ijciet/issues.asp?JType=IJCIET&VType=9&IType=13
26. Jin, C., Yu, R., & Shui, Z. (2018). Fungi: A Neglected Candidate for the Application of Self-Healing Concrete. Frontiers in Built Environment, 4, 62.
27. J. Luo, X. Chen, J. Crump, H. Zhou, D.G. Davies, G. Zhou, N. Zhang, C. Jin, Interactions of fungi with concrete: Significant importance for bio-based self-healing concrete. Constr. Build. Mater. 164, 275–285 (2018). https://doi.org/10.1016/j.conbuildmat.2017.12.233
28. R.R. Menon, J. Luo, X. Chen, H. Zhou, Z. Liu, G. Zhou, N. Zhang, C. Jin,  Screening of fungi for potential application of self-healing concrete. Sci. Rep. 9, 2075 (2019).https://doi.org/10.1038/s41598-019-39156-8
29. D. Kour, K.L. Rana, N. Yadav, A.N. Yadav, J. Singh, A.A. Rastegari, A.K. Saxena, Agriculturally and industrially important fungi: current developments and potential biotechnological applications, in: Recent advancement in white biotechnology through fungi, Springer, Cham, pp. 1-64 (2019).
30. R.C. Soccol, E.S. Ferreira da Costa, L.A.J. Letti, S.G. Karp, A.L. Woiciechowski, A. L., L. Porto de Souza Vandenberghe, Recent developments and innovations in solid state fermentation, Biotechnol. Res. Innov. 1, 52–71 (2017). doi: 10.1016/j.biori.2017.01.002
31. A.N. Yadav, S. Mishra, S. Singh, A. Gupta, Recent advancement in white biotechnology through fungi. Springer (2019).
32. A.N. Yadav, Recent advancement in white biotechnology through fungi: Volume 2: Perspective for value-added products and environments. Springer (2019).
33. D. Tesei, K. Sterflinger, G. Marzban, Global proteomics of extremophilic fungi: mission accomplished?, in: Fungi in Extreme Environments: Ecological Role and Biotechnological Significance, Springer, Cham, pp. 205-249 (2019).
34. N. Magan, Fungi in extreme environments, in: C. P. Kubicek, I. S. Druzhinina (Eds.), Environmental and microbial relationships, 2nd Edn., The Mycota IV, Berlin: Springer-Verlag, pp. 85–103 (2007).
35. V.N. Gonçalves, I.M.S. Alves, F.S. de Oliveira, C.E.G.R. Schaefer, C. V.G. Turbay, C.A. Rosa, L.H. Rosa, Rock-inhabiting fungi in Antarctica: new frontiers of the edge of life, in: Fungi of Antarctica, Springer, Cham. pp. 99-126 (2019).
36. S. Bindschedler, G. Cailleau, E. Verrecchia, Role of fungi in the biomineralization of calcite. Minerals 6, 1–19 (2016). doi: 10.3390/min6020041
37. P. Phanjom, G. Ahmed, Biosynthesis of silver nanoparticles by Aspergillus oryzae (MTCC No. 1846) and its characterizations. Nanosci. Nanotech. 5, 14–21 (2015). doi: 10.5923/j.nn.20150501.03
38. F. Manoli, E. Koutsopoulos, E. Dalas, Crystallization of calcite on chitin. J. Cryst. Growth 182, 116–124 (1997). doi: 10.1016/S0022-0248(97)00318-7
39. E.P. Burford, S. Hillier, G.M. Gadd, Biomineralization of fungal hyphae with calcite (CaCO₃) and calcium oxalate mono- and dihydrate in carboniferous limestone microcosms. Geomicrobiol. J. 23, 599–611 (2006). https://doi.org/10.1080/01490450600964375
40. J.A. Sayer, M. Kierans, G.M. Gadd, Solubilisation of some naturally occurring metal-bearing minerals, limescale and lead phosphate by Aspergillus niger. FEMS Microbiol. Lett. 154, 29–35 (1997). https://doi.org/10.1016/s0378-1097(97)00296-6
41. M.M. Gharieb, J.A. Sayer, G.M. Gadd, Solubilization of natural gypsum (CaSO₄.2H₂O) and formation of calcium oxalate by Aspergillus niger and Serpula himantioides. Mycol. Res. 102, 825–830 (1998). https://doi.org/10.1017/S0953756297005510
42. G. M. Gadd, Geomycology: biogeochemical transformations of rocks, minerals, metals and radionuclides by fungi, bioweathering and bioremediation. Mycol. Res. 111, 3–49 (2007). doi: 10.1016/j.mycres.2006.12.001
43. A. Ahmad, D. Rautaray, M. Sastry, Biogenic calcium carbonate: calcite crystals of variable morphology by the reaction of aqueous Ca²⁺ ions with fungi. Adv. Funct. Mater. 14, 1075–1080 (2004). doi: 10.1002/adfm.200400005
44. M.A. Penalva, J. Tilburn, E. Bignell, H. N. Jr. Arst, Ambient pH gene regulation in fungi: making connections. Trends Microbiol. 16, 291–300 (2008). doi: 10.1016/j.tim.2008.03.006
45. S.S. Bang, J.J. Lippert, U. Yerra, S. Mulukutla, V. Ramakrishnan, Microbial calcite, a bio-based smart nanomaterial in concrete remediation. Int. J. Smart Nano Mater. 1, 28–39 (2010). doi: 10.1080/19475411003593451
46. H. Koike, A. Aerts, K. LaButti, I.V. Grigoriev, S.E. Baker. Comparative genomics analysis of Trichoderma reesei strains. Ind. Biotech. 9, 352–367 (2013). https://doi.org/10.1089/ind.2013.0015
47. G. Pontecorvo, J.A. Roper, L.M. Hemmons, K.D. Macdonald, A.W. Bufton, The genetics of Aspergillus nidulans. Adv. Genet. 5, 141–238 (1953). https://doi.org/10.1016/S0065-2660(08)60408-3
48. H. Žáková, J. Pazderka, Z., Rácová, P. Ryparová, Effect of bacteria Bacillus pseudofirmus and fungus Trichoderma reesei on self-healing ability of concrete. Acta Polytechnica CTU Proceedings, 21, 42-45 (2019). https://doi.org/10.14311/APP.2019.21.0042
49. C. Fang, D. Kumari, X. Zhu, V. Achal,  Role of fungal-mediated mineralization in biocementation of sand and its improved compressive strength. International Biodeterioration & Biodegradation, 133, 216-220. (2018). https://doi.org/10.1016/j.ibiod.2018.07.013
50. C. Martuscelli, C. Soares, A. Camões, Lima, N, Potential of Fungi for Concrete Repair. Procedia Manufacturing, 46, 180-185 (2020).
51. E. Bignell, S. Negrete-Urtasuri, A.M. Calcagno, K. Haynes, H. N. Jr. Arst , T. Rogers, The Aspergillus pH-responsive transcription factor PacC regulates virulence. Mol. Microbiol.  55, 1072–1084 (2005). https://doi.org/10.1111/j.1365-2958.2004.04472.x.

---
