Density, Ultrasonic Velocity, Isentropic Compressibility, Molar Volumes and Related Excess Parameters Studies on Ethyl Acetate with 1-Ethanol at 303K, 308K, and 313K

Sampandam Elangovan

Department of Physics, College of Natural and Computational Science, Wollega University, Nekemte, Ethiopia-395.

Corresponding Author E-mail: elangovan.physics@rediffmail.com

DOI : http://dx.doi.org/10.13005/msri/180205

Article Publishing History
Article Received on : 03 Jul 2021
Article Accepted on : 27 Jul 2021
Article Published : 29 Jul 2021
Plagiarism Check: Yes
Reviewed by: Dr. Paroma Arefin
Second Review by: Dr. Anil Govekar
Final Approval by: Dr. Ehsan Nazarzadeh Zare
Article Metrics
ABSTRACT:

A binary liquid mixture that consists of ethyl acetate and 1-ethanol has been prepared at various concentrations by the mole fraction method. The ultrasonic velocity and density have been determined at 303K, 308K and 313K. From the experimental data, the excess isentropic compressibility, excess molar volumes, excess internal pressures, and excess molar enthalpy have been computed. The variations were observed as polynomial and fitted to the Redlich-Kister polynomial functions. By using this function, adjustable parameters and the standard deviations have been calculated. The experimental and theoretical data reveal that the existence of the intermolecular interactions between the selected liquid system. The partial molar compressibility’s and partial molar volume also calculated at infinite dilution of the system. In general, the intermolecular forces have tended to the variations in the magnitude and sign of the excess parameters. The excess molar volume (Vme), excess isentropic compressibility (), excess internal pressure ( ) and the enthalpy ( ) show the negative magnitude at the entire range of concentrations and temperatures. The significant variations of these parameters with the mole fraction of ethyl acetate have been analysed. Furthermore, the strength of the intermolecular interactions decreased with increasing the experimental temperatures as 303K > 308K >313K.

KEYWORDS: Ethyl Acetate; 1-ethanol; Excess Molar Volume; Ultrasonic Velocity

Copy the following to cite this article:

Elangovan S. Density, Ultrasonic Velocity, Isentropic Compressibility, Molar Volumes And Related Excess Parameters Studies On Ethyl Acetate With 1-Ethanol At 303K, 308K, And 313K. Mat. Sci. Res. India;18(2).


Copy the following to cite this URL:

Elangovan S. Density, Ultrasonic Velocity, Isentropic Compressibility, Molar Volumes And Related Excess Parameters Studies On Ethyl Acetate With 1-Ethanol At 303K, 308K, And 313K. Mat. Sci. Res. India;18(2). Available from: https://bit.ly/3ybEUDz


Introduction

The intermolecular forces acting between the molecules take a vital role in the interactions between the functional groups present in the binary as well as the ternary liquid mixtures. Due to the variations of these forces and the temperature of the solutions, thermo dynamical properties of the liquid system are also significantly changed. The study of the changes in the ideal and excess parameters at various temperatures in the entire concentrations leads to provoke the nature of intermolecular interactions, molecular structure, and intermolecular forces acting in the liquid systems1-3.

In recent years, determination of various physico chemical properties such that molar volume, density , ultrasonic velocity of the pure liquids and the binary systems are used as one of the reliable methods to investigate the strength and nature of the bonding formations among the molecules4-6. Moreover, the volumetric properties depend upon the temperature of the systems have reported as a functional indicator of the presence of the intermolecular interactions 7,8. The excess internal pressure also considerable changes with the interactions, recent reports of various liquid mixtures 9-11 furnish the impact of the excess internal pressure insight of the intermolecular forces acting among the molecules as a function of temperature of the system.

Ethyl acetate is one of the ester group compounds. It acts as a solvent in the column chromatography. Furthermore, ethyl acetate acts as a building block in the synthesis process of bulk materials having spectacular applications in the pharmaceutical, polymers, fragrances. Alcohols are self-associated organic compounds, have widely used in chemical and pharmaceutical and applied research 12. The 1-ethanol behaves as both H-bond donor and acceptor. The ethyl acetate acts as H- bond acceptor. The prospect of hydrogen bonding between the hydroxyl group of 1-ethanol and the carbonyl group of the ethyl acetate gives the significant importance of the chosen liquid system. The present work is an attempt to study the excess molar volume (VmE), excess isentropic compressibility (ΔksE ), excess internal pressure (πiE), excess molar enthalpy(HE) , partial molar volume (Vm1, Vm2 ) , and partial molar compressibility’s (k1 , k2 )  and their excess values (Vm1E, Vm2E, β1E , β2E)of ethyl acetate and 1- ethanol over the entire composition at 303K, 308K, and 313K.

Materials and methods

The various concentrations of ethyl acetate and 1-ethanol solutions were prepared by the mole fraction method. An electronic mass balance (OHAUS- AR 2104) with accuracy of ± 1x 10-4 g was used to measure the masses of the solvents. Air tight, sample bottles were used to avoid the evaporation and avoid the atmospheric moisture. The Analytical Reagent (AR grade) chemicals which are used in the study were obtained from Ranboxy Fine Chemicals Pvt Ltd (India). These chemicals were purified by following the standard procedure prescribed by Perrin and Armarego [13]. A pycnometer with a bulb volume of 10 ml and capillary diameter 0.1cm was used to determine the densities of the liquid mixtures and calibrated with the double distilled water. A constant temperature bath, INSREF- India, modelIRI-016C was used to maintain the experimental temperature of the accuracy ±0.1K. The concurrent values of the density were noted with the precision ± 0.001 kgm-3. A single frequency (2MHz) ultrasonic inter ferometer with the uncertainty ±1 ms-1 was used to gauge the ultrasonic velocity of the pure and mixtures. It was calibrated with the double distilled water and carbon tetrachloride.

Theory

The various physicochemical parameters were determined by the standard relations 14-17 as listed below,

Here Χ1 and Χ2 are mole fractions; M1 and M2 are molar masses; P1 and P1 are densities of ethyl acetate and 1-ethanol respectively. P is the density of liquid mixtures.

Here u is the ultrasonic velocity.

Here, ksid is the ideal value of the isentropic compressibility

Here, xi is the mole fraction of the components (In this study, x1 denotes the mole fraction of ethyl acetate and x2 represents the mole fraction of 1-ethanol).

Here π1 is the internal pressure of the liquid, V1 is the volume of the liquid, πmix, Vmix are the internal pressure and volume of the mixture.

The excess parameters were fitted with Redlich-Kister polynomial as the following relations,

The ai represents the coefficients of the polynomial.

Here Yexp is the experimental data and Ycal is the theoretical data. The n denotes the total number of experimental values and p is the number of coefficients.

The average partial molar volume of ethyl acetate ( Vm,1 ) and 1-ethanol( Vm,2) are given as below, 1 denotes the first component ethyl acetate and 2 represents the second component 1-ethanol,

The average partial molar isentropic compressibility of the selected components at the constant temperature (T) and atmospheric pressure are given in equ (12) and equ (13) respectively

The molar volume at the infinite dilution can be derived from the equ (14) and equ (15) for the ethyl acetate and 1- ethanol respectively.

The excess molar volume, and excess isentropic compressibility at the infinite dilutions are given as,

Results and Discussions

The experimental observations of density (P), ultrasonic velocity (U), and the calculated the isentropic compressibility of the entire concentrations of ethyl acetate and 1-ethanol are listed in Table1. In this study, the density (ρ) of the liquid mixtures increased with the ethyl acetate concentrations. Moreover, densities decreasing with increase the experimental temperature. This trend suggested the dissociation of the dipoles in the liquid system.

Table 1: Density (ρ), Ultrasonic velocity (U), and isentropic compressibility (ks) of  ethyl acetate and 1-ethanol at 303K, 308K, and 313K.

X1

ρ

(kgm-3)

U

(ms-1)

ks

10-10

( m2N-1)

ρ

(kgm-3)

U

(ms-1)

ks

10-10

(m2N-1)

ρ

(kgm-3)

U

(ms-1)

ks

10-10

 (m2N-1)

303 K

308K

313K

0.0000

784

1123

10.1140

779

1115

10.3255

774

1107

10.5430

0.1012

795

1124

9.9564

790

1116

10.1635

786

1109

10.3446

0.2026

806

1125

9.8030

800

1118

10.0006

795

1111

10.1907

0.3028

817

1126

9.6539

811

1119

9.8473

804

1112

10.0585

0.4035

828

1127

9.5087

822

1120

9.6982

814

1114

9.8993

0.5034

839

1128

9.3674

832

1122

9.5475

825

1116

9.7324

0.6037

850

1128

9.2461

843

1123

9.4062

833

1118

9.6044

0.7029

861

1129

9.1119

854

1124

9.2685

844

1120

9.4454

0.8020

872

1130

8.9810

864

1125

9.1450

852

1121

9.3401

0.9083

884

1131

8.8435

875

1127

8.9980

864

1123

9.1776

1.0000

894

1132

8.7291

885

1128

8.8805

872

1125

9.0611

In general, the ultrasonic velocity varies with the medium and intermolecular forces acting between the solute- solvent systems. Furthermore, the increasing cluster of molecules with the increasing mole fraction of the ethyl acetate leads to the increasing ultrasonic velocity (U) linearly in the liquid mixtures. Since, the increasing temperature rupture the molecular forces, the ultrasonic velocities, decreased with the increasing the entire temperature range. Obviously, the isentropic compressibility inversely related with the density and ultrasonic velocity of the liquid system [18-20]. Thus, the isentropic compressibility values are increasing with the temperature from 303K to 313K.

The molar volume, partial molar volume of the pure liquids and the partial excess molar volume at the infinite solutions with their excess values are listed in Table 2.

Table 2: The molar volume, partial molar volume, excess partial molar volume at infinite dilution of ethyl acetate and 1-ethanol at 303K, 308K and 313K.

Temperature

V1*

(m3 mol-1)

m,1

(m3 mol-1)

Vm,1E

(m3 mol-1)

V2*

(m3 mol-1)

m,2

(m3 mol-1)

Vm,2E

(m3 mol-1)

303K

100.88

99.75

-1.13

93.95

92.61

-1.34

308K

103.59

101.95

-1.64

96.8

93.59

-3.21

313K

105.45

103.35

-2.10

97.7

94.53

-3.17

In this present work, the partial molar volume at the infinite dilutions

are relatively smaller than that of the molar volume of the pure liquid components ( V1*, V2*) respectively. This result suggested that the pure component’s molar volume is the resultant of the actual molar volume and free molar volume that arises due to the formation of self association and the intramolcular forces acting within the molecules21,22. Similar trends observed in the molar isentropic compressibility and the partial molar isentropic compressibility’s and their excess values are obtained at the entire temperature ranges as specified in Table 3.

Table 3: The molar isentropic compressibility, partial compressibility, excess partial molar compressibility at infinite dilution of ethyl acetate and 1-ethanol at 303K, 308K and 313K

Temperature

K s,1
 10-10

(m2N-1)

Km,10

10-10

(m2N-1)

Km,1E

10-10

(m2N-1)

K s,2

10-10

(m2N-1)

Km,20

10-10

(m2N-1)

Km,2E

10-10

(m2N-1)

303K

10.11

10.15

-0.04

8.73

8.76

-0.03

308K

10.32

10.39

-0.07

8.88

8.94

-0.06

313K

10.54

10.57

-0.03

9.06

9.17

-0.11



The Redlich-Kister [23] polynomial coefficients (a1,a2,a3,a4, a5) are calculated along with the standard deviations σ (YE) of  the excess values of the selected parameters are as shown in Table 4.

Table 4: Redlich-Kister polynomial coefficients with the standard deviations of the excess parameters (VmE, ΔksE, πiE, HmE ) of ethylacetate and 1-ethanol at 303K, 308K , and 313K.

Temperature

(K)

Parameters

a1

a2

a3

a4

a5

 σ (YE)

303K

VmE (m3mol-1)

-0.471

-0.311

-0.231

-0.451

-0.095

0.033

ΔksE10-10 (m2N-1)

-0.341

-0.329

-0.113

-0.321

-0.023

0.025

πiE10-12 Nm-2

-0.341

-0.385

-0.120

-0.321

-0.016

0.032

HmE 10-20(J mol-1)

-1.027

-0.464

0.163

-1.007

-0.299

0.045

308K

VmE (m3mol-1)

-0.789

-0.160

0.185

-0.769

-0.321

0.037

ΔksE 10-10 (m2N-1)

-1.187

-0.503

0.291

-1.167

-0.427

0.046

πiE10-12 Nm-2

-0.272

-0.642

0.525

-0.252

-0.661

0.034

HmE10-20(J mol-1)

-0.326

-1.022

0.956

-0.306

-1.092

0.040

313K

VmE (m3mol-1)

-0.358

-1.480

1.380

-0.338

-1.516

0.048

ΔksE 10-10 (m2N-1)

-0.110

-0.128

-0.150

-0.090

-0.014

0.031

πiE 10-12 Nm-2

-0.044

-0.106

-0.237

-0.024

-0.101

0.035

VmE10-20(J mol-1)

-0.010

-0.051

-0.346

-0.030

-0.210

0.030



All the coefficients are found in negative magnitude and the standard deviations are in negligible values are obtained in the entire temperature range. This data validated the precision of the measurements and theoretical calculations.

The deviations of the excess molar volume ( VmE ), excess isentropic compressibility ( ΔksE ), excess internal pressure ( πiE ) and the enthalpy ( VmE  ) at 303K, 308K, and 313K are plotted against the mole fraction of ethyl acetate as displayed  in Fig 1(a-d) respectively.

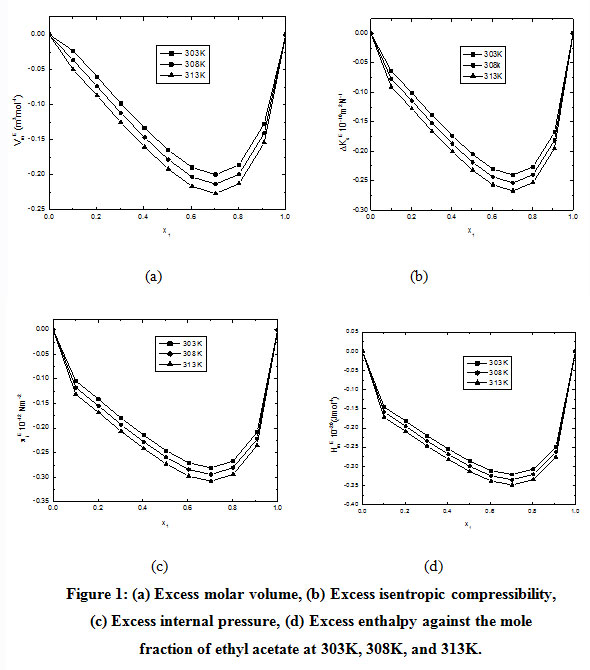

Figure 1: (a) Excess molar volume, (b) Excess isentropic compressibility, (c) Excess internal pressure, (d) Excess enthalpy  against the mole fraction of ethyl acetate at 303K, 308K, and 313K.

Click here to View figure

The deviations of the excess parameters are useful to interpret the intermolecular interactions among the unlike molecules. In general, the positive values of the excess values revealed that the dispersion forces. More over, the negative values of the excess parameters suggested that the dipole-dipole, charge transfer interaction, and hydrogen bonding formation between the liquid system 24.

The Fig 1(a-d) signifies that all the excess parameters show the negative sign, and the magnitudes vary with the entire concentrations and temperature range. At a critical mole fraction (x1~0.7), the negative excess values increased with the increasing the concentrations of ethyl acetate. The change in the variations suggested the 1:1 complex formation of the ethyl acetate and 1-ethanol at the entire range of temperatures. The changes in the experimental and the excess parameters confirmed that (i) Breakdown of the self association takes  place with increasing 1-ethanol concentrations, (ii) While increasing the temperature, dispersive force increased  between the molecules, (iii) At a critical mole fraction (x1~0.7), the negative excess deviation decreased with increasing the concentrations of ethyl acetate. This trend reveals the weakened hydrogen bonding formation between(C=O….H-O) functional group present in the liquid mixtures. The negative excess parameters were decreasing with increase the experimental temperature. This result suggested that the strength of intermolecular interactions decreased with the increase the temperature and found in the order303K>308K>313K.

Conclusion

The ethyl acetate and 1-ethanol mixtures were prepared at various concentrations at 303K,308K, and 313K. Physico chemical parameters such that the density, ultrasonic velocity of the selected components were measured. Using the experimental results, the excess isentropic compressibility, excess molar volumes, excess internal pressures, and excess molar enthalpy were calculated. More over the excess parameters also evaluated. The excess parameters were fitted with the Redlich-Kister polynomial functions. The hydrogen bonding between the functional groups was stronger at the 1-ethanol rich concentrations and weaker with ethyl acetate molecules. The strength of the intermolecular interactions were decreasing  with the temperature as 303K>308K>313K.

Acknowledgment

The author is thankful to the Research and Technology Transfer Centre, Wollega University, Nekemte, Ethiopia for providing the necessary facilities to complete this work.

Conflict of interest

Not applicable

Funding Source

Research project WU/S1/108, sanctioned by the Research and Technology Transfer Centre, Wollega University, Nekemte, Ethiopia.
