Enhanced Photocatlytic Activity of two Dimensional Graphitic C3N4@Co3O4 Core Shell Nanocomposite for Discriminatory Organic Transformation of CF dye under Hg-vapor Reactor
1Department of Zoology, Research Centre in Zoology and PG, Loknete Vyankatrao Hiray Arts, Science and Commerce, College, Panchavati, Nashik-422003.
(Affiliated to Savitribai Phule Pune University, Pune (MH), India).
2Department of Chemistry Research Centre in Chemistry and PG, Loknete Vyankatrao Hiray Arts, Science and Commerce, College, Panchavati, Nashik-422003. (Affiliated to Savitribai Phule Pune University, Pune (MH), India).
3Department of chemistry, Arts, Commerce and Science College, Onde, Taluka- Vikramgad, District- Palghar, (MH), India- 401605(Affiliated to University of Mumbai, Mumbai, (MH), India)
4Department of chemistry, Karmveer Abasaheb alias N.M. Sonawane Arts Commerce and Science College, Satana, Taluka-Baglan, District- Nashik, India-422101 (Affiliated to Savitribai Phule Pune University, Pune (MH), India)
Article Publishing History Article Received on : 12-Jul-2021 Article Accepted on : 31-Aug-2021 Article Published : 03 Sep 2021 Plagiarism Check: Yes Reviewed by: Dr Guruswamy B Second Review by: Dr. Azeem Pasha Final Approval by: Dr. Jit Satyabrata
Article Metrics
ABSTRACT:
In the present investigation the material Co3O4 nanoparticles were prepared by co-precipitation method, while graphitic carbon nitride (g-C3N4) was prepared by direct heating of melamine. The nanocompositeg-C3N4- Co3O4were prepared by stoichiometric mixing and direct heating in porcelain boat followed by calcination. The prepared nanomaterials were characterized by various techniques. These both materials were characterized by XRD to get structural parameters and to confirm the average particle size of prepared nanomaterial. The scanning electron microscopy(SEM) was carried out to get surface characteristics of prepared materials. The energy dispersive spectroscopy was conducted to get elemental composition prepared material Co3O4and g-C3N4- Co3O4 .The transmission electron microscopy (TEM) was conducted to get lattice information of prepared material. While magnetic properties of both the material were investigated by means of vibrating sample magnetometer (VSM), since cobalt oxide is a ferromagnetic material. The surface area was confirmed from Brunauer-Emmett-Teller (BET) study. The g-C3N4- Co3O4nanocomposite has found enhanced surface areaof 78.48 m2/g in comparison to the sole Co3O4nanomaterial (55.23 m2/g). Both these prepared materials were utilized in photocatlytic degradation of CarbolFuchsin (CF) dye. The various parameters related to optimization of photocatlytic degradation of dyes were investigated in detail. The carbon nitride mediated cobalt oxide material is found to be very effective for degradation of CF dye and almost 97% of dye was successfully decomposed by the g-C3N4- Co3O4nanocomposite. The reusability test confirms that the prepared g-C3N4- Co3O4nanocomposite is very efficient in degradation of CF dye in multiple cycles with 110 minutes of contact time.
Patil A. P, Ahire S. A, Hiray S. N. K, Kapadnis K. H, Rajput T. A, Bhimraokoli P. Enhanced Photocatlytic Activity of two Dimensional Graphitic C3N4@Co3O4 Core Shell Nanocomposite for Discriminatory Organic Transformation of CF dye under Hg-vapor Reactor Mat. Sci. Res. India;18(2).
Copy the following to cite this URL:
Patil A. P, Ahire S. A, Hiray S. N. K, Kapadnis K. H, Rajput T. A, Bhimraokoli P. Enhanced Photocatlytic Activity of two Dimensional Graphitic C3N4@Co3O4 Core Shell Nanocomposite for Discriminatory Organic Transformation of CF dye under Hg-vapor Reactor . Mat. Sci. Res. India;18(2).Available from: https://bit.ly/3t9LqJA
Introduction
Nanotechnology has been successfully utilized in several applications in technical fields. Nanotechnology is associated with countless solutions to the engineering, science and technology. There are many applications of material science such as photocatalysis[1,2], waste treatment[3], gas sensors[4], biosensors, SOFC, electrochemical cells, solar cells, organic conversions, organic LED, adsorption studies, H2 production etc.[5-9].Presently mankind is associated numerous problems. Most of the problems are solve with the use nanomaterialsas catalysts. The major problems today we are facing are associated with pollution, more specifically air and water pollution. The water problems are originated from industrial, anthropological activities and waste effluents discharged tough water stream. Several organic, polymer and chemical industries producing several drugs and products, the waste after producing these chemicals are unnecessarily discharged through the rivers and nearby costal region which initiates the basis of pollution. Although several researchers have developed some efficient systems through engineering work to defeat these water pollution related problems, but still we are not completely successful to overcome these environmental challenges. Formerly, the metal oxides were utilized as catalysts very effectively in various applications of science streams. With the movement of time the sole metal oxide are modified by researchers with the ease of doping and other modification methods. There are plenty of fabricated materials by transition metal doping to metal oxides, non-transition elements doped to metal oxides. In last decades the nanocomposite materials such as CNS doped metal oxide[10-11],graphene doped metal oxides, CNT mediated materials, graphitic carbon nitride doped metal oxides, boron nitride metal oxide nanocomposite are very popular materials in various applications of catalysis. Now days there is vast trend of nanocomposite mediated with carbon nitride over metal oxide applied in photocatalysis or adsorptive removal of dyes or effluent treatment12-14.
Carbon nitride is now days a new class of material in association with metal oxides to be applied in photocatalysis and useful catalysis related applications. Carbon nitride has a good thermal stability made up from the elements C, H, N in two dimensional (2D) frameworks. The C3N4is exists in planar polymeric form with planar structure having structural similarities with graphite molecule. The g- C3N4is metal free polymer with the band gap energy of 2.8 eV. Due to its good thermal stability with metal oxides it is being used in most of the catalytical applications. Most importantly the methods of preparation of g- C3N4 arevery cheap and cost effective. Among the popular methods of preparation of g-C3N4, the heating of melamine, thermal reaction between cyanuric chloride and sodamine, in situ chemical vapor deposition (CVD) etc.15-18. Although, there are many inherent properties of g-C3N4but as per the photocatlytic applications it has several draw backs such as rapid recombination of charge carriers, not efficient in light utilization from visible range and average electrical conductivity. Thus, there is a great need to modify this material to get access in photocatlytic route19-20.
Most of the researchers worked to overcome this problem and get successful to utilize this material in photocatalysis. As per the reports from, Hassani et.al, Vadivel et.al, and kumar et.al, the magnetic graphitic carbon nitride i.e graphitic carbon nitride along with magnetic material such as CO3O4, Fe3O4 or NiFe2O4 etc. found to be excellent photocatlyst to remove several organic pollutant dyes.As per the reports the magnetic graphitic carbon nitride is able to overcome recombination of electron hole pair, enhancements in visible light strength required for absorption, etc. There is some modern trend to modify the g-C3N4 such as chemical doping, physical doping, and morphology command etc. out of that chemical and physical doping of g-C3N4over the metal oxide to prepare nanocomposite to enhance many physical, chemical properties of g-C3N4is a good practice now days. In physical and chemical methods of modification with graphitic carbon nitride there is use of semiconducting material such as NiFe2O4, NiFe2O4, ZrO2, TiO2, ZnO, CuOetc. are more common semiconducting material are being utilized to prepare carbon nitride–metal oxide nanocomposite21-30
The present research deals with low cost and efficient synthesis of carbon nitride mediated magnetic cobalt oxide nanocomposite. The prepared nanocatalyst was successfully utilized for photocatlytic degradation of CarbolFuchsin dye. The prepared catalysts were optimized for various parameters such as effect of catalyst dose, effect of pH, effect of initial dye concentration and contact time. The prepares carbon nitride mediated cobalt oxide nanocomposite was successful in degradation of CF dye with reaction conditions 20 ppm dye, 0.8 g catalyst dose and 7.5 pH. The nanocomposite is found to be very successful, almost 97% of CF dye.
Materials and Methods
All the chemicals utilized in the present research are of AR grade, purchased from merk limited, Mumbai and used without further purification. Chemicals used are cobalt acetate tetra hydrate, Melamine powder, NH3, deionized water.
Synthesis of undoped cobaltoxide (Co3O4) nanoparticles by co-precipitation method
0 .02 moles of Cobalt acetate tetra hydrate and 0.03 moles of urea were dissolved in 50 ml of deionized water in separate beakers. After the complete dissolutions both these solutions were mixed together, the pink colored sol was obtained. The mixed solution cobalt precursor and urea were kept over magnetic stirrer for 30 minutes to get homogenous mixed solution. The stirred solution was then transferred to round bottom flask (RB) , then the RB was fitted to the water condenser , the whole solution was allowed to refluxed for 12 hours. After the constant heating the pink colored solution was turned to indistinct blue color with solid residue, the solution containing residue was allowed to cool at room temperature and then filtered out. The residue was washed with hot water and ethanol to free from impurities. The dried residue was shifted to silica crucible and incinerated in muffle furnace for 5-6 hours at 650 0C. At the end black colored cobalt oxide nanoparticles were recovered from muffle furnace for further use and characterization 31-32.
Fabrication of graphitic carbon nitride (g-C3N4)
The graphitic carbon nitride (g-C3N4) was fabricated by utilizing melamine (C3N6H6) as a resource. The direct heating strategy was employed for synthesis of graphitic carbon nitride from melamine (as given in reaction 1). Initially, 5 gram of melamine was kept in silica crucible and transferred to muffle furnace at 550 0C for nearly 130 minutes. After this time, the sample melamine was converted to graphitic carbon nitride with the elimination of ammonia gas molecules. The sample was kept at room temperature for 30 minutes, after cooling the (g-C3N4) material was grinded further in mortar pestle for 40 minutes to get well homogenized graphitic carbon nitride sample for further use 33-34.
Synthesis of g-C3N4@Co3O4nanocomposite
The graphitic carbon nitride-cobalt oxide nanocomposite (GCNCON) was prepared by mixing 1 g of g-C3N4 with 1 g of Co3O4 nanoparticles. Initially, both these materials graphitic carbon nitride and cobalt oxide were grinded in mortar pestle for nearly 30 minutes. After homogeneous mixing, the mixture was transferred to porcelain boat and heated with constant heating rate of 15 0C min-1 in oxygen atmosphere up to 600 0C for nearly 3 hours. The dark gray color graphitic carbon nitride-cobalt oxide nanocomposite was obtained on next day for further use and characterization 35-36.
Results and Discussion
XRD Analysis

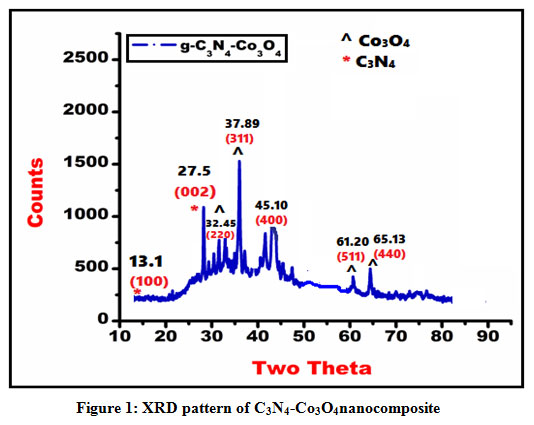

The prepared material g-C3N4/Co3O4 nanocomposite was characterized by x-ray diffraction technique to confirm structural and chemical characteristics of the prepared nanocomposite. The Braggs scanning angle for the XRD instrument was varying from 10-900. While, the copper Kα metal was used as a source to produce x-ray beams. The XRD pattern for fabricated g-C3N4/Co3O4 nanocomposite is as depicted in figure 1 from which crystalline nature and average nanoparticle size of the prepared material was confirm. From XRD pattern the Braggs reflection patterns can be assign to the formation of graphitic carbon nitride mediated cobalt oxide nanocomposite. From the XRD data the 2θ signals of diffracted peaks for g-C3N4/Co3O4are 32.45, 37.89, 45.10, 61.20, 65.13 for the reflection of (220), (311), (400), (511), (440) planes. While two additional peaks obtained in the XRD spectrum are 13.100 and 27.5 0 with (100) and (002) planes are attributed to the characteristics interlayer planar ring two dimensional structure forg-C3N4 material (JCPDS 87-1526). The x-ray diffraction data as mention above with typical two theta values and corresponding hkl planes confirms the formation of cubic crystal lattice of for g- C3N4/Co3O4 nanocomposite material.The average crystallite size calculated by using of Debye- Scherer’s formula. [D = Kλ/β COS θ].where D is average particle size, K is constant (0.9 to 1), β is full-width half maxima (FWHM) of a diffracted peak, θ is the angle of diffraction. The average particle size calculated for g-C3N4/Co3O4was found to be 23.44 nm [37].The match scan data of g-C3N4/Co3O4 shows the formation of g-C3N4/Co3O4nanocompositewith JCPDS number 43-1003.
The figure 2 a-d showing the scanning electron micrographs for the prepared cobalt oxide and carbon nitride mediated cobalt oxide nanocomposite. The surface texture, appearance of nanoparticles and porosity of the prepared materials can be easily seen from the images as given below. The different size nanoparticles of cobalt oxide and carbon nitride mixed cobalt oxide with homogeneous surface can be seen for both these materials. The SEM images also showing good porous appearance of the prepared material as well as over the surface lattice smaller intestinal spaces or voids can be seen for both the materials.The voids sometimes act as adsorbate to occlude several smaller molecules via chemisorption or physisorption mechanism. Since, Photocatalysis is a surface phenomenon hence voids, porosity and surface area over the material lattice are the key points for the mechanism. Both the prepared materials showing close agglomeration of various dimensions nanoparticles all over the surface lattice 38-40.
The elemental composition of undoped cobalt oxide and graphitic carbon nitride modified C3N4-Co3O4nanocomposite was confirmed by using energy dispersive spectroscopy study. The spectrum for sole cobalt oxide nanoparticles is as depicted in figure in which the embedded table is showing the elemental composition of each individual element in fabricated cobalt oxide material. The spectrum shows sharp resolution of elemental oxygen at 1KeV, while the elemental cobalt is found to be resoluted at approximately 7 KeV. While EDS spectrum for graphitic carbon nitride mediated cobalt oxide is as depicted in figure 3-b. The spectrum depicts resolution of elemental cobalt at 7 KeV. The additional sharp lines for elemental carbon and nitrogen from carbon nitride can be observed within the range of 1KeV. The EDS results obtained for both the materials is in good agreement with the reported research data 41.

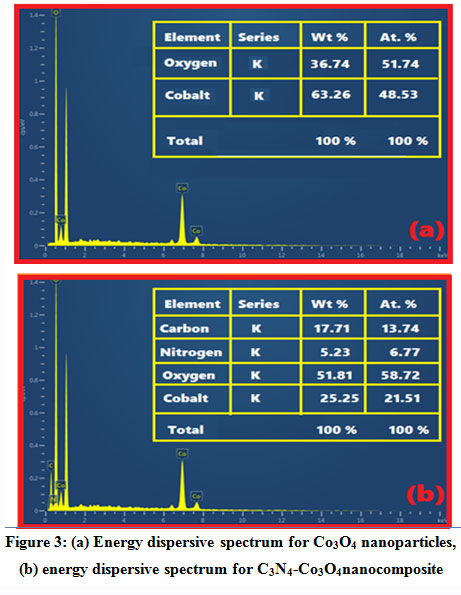

Figure 3: (a) Energy dispersive spectrum for Co3O4 nanoparticles, (b) energy dispersive spectrum for C3N4-Co3O4nanocomposite
High Resolution Transmission electron microscopy (HR-TEM)
The crystal lattice morphology of the prepared cobalt oxide and carbon nitride mediated cobalt oxide nanocomposite was investigated by using high resolution transmission electron microscopy. The HR-TEM images of both the fabricated material is as depicted ii figure 4 a-d. According to the literature study the crystal lattice for cobalt oxide belongs to the cubic lattice .The TEM data obtained for both these materials is also showing the approximate cubic lattice images for these prepared materials. The TEM depicts the close agglomeration of varied size nanoparticles ranging from 20 to 100 nm. From the TEM data for both the fabricated materials showing good agreement with X-ray diffraction data as per as the nanoparticle size is concern 42.
Magnetic study by vibrating sample magnetometer (VSM)
Since cobalt oxide is a ferromagnetic in nature hence magnetic parameters cobalt oxide and carbon nitride mediated cobalt oxide were identified with the help of vibrating sample magnetometer (VSM) technique with 1000 guass applied magnetic field model number Lakeshore VSM-7410 at normal temperature region. The magnetic saturation curves for the fabricated materials undopedCo3O4 nanoparticles and C3N4-Co3O4nanocomposite is as depicted in figure 5a and 5b respectively. Both figure of prepared material shows the characteristic hysteresis loop for both these material indicating the definite ferromagnetic character of these materials. From figure 5a it can observe that the extent of saturation magnetization for undoped Co3O4 material is found to be 188.12 emu/g, while figure 5b shows extent of saturation magnetization for C3N4-Co3O4 material it was 89.56emu/g. Cobalt oxide being inherently magnetic in nature the magnetic saturation is found to be very high in comparison to the carbon nitride-cobalt oxide nanocomposite43-44. The declined in magnetic saturation in case of C3N4-Co3O4material may be attributed to the presence of existence of smaller concentration of carbon nitride ring structures making weak magnetic domains for cobalt oxide material. The magnetic characteristics such as Retentivity (Mr), ,Coercivity (Hc) , sensitivity and magnetization saturation (Ms) is as depicted in table 1.
Figure 5: (a) Magnetization spectrum for Co3O4, (b) Magnetization curve for C3N4-Co3O4 nanocomposite.
Table 1: Magnetic parameters of Co3O4 and C3N4-Co3O4 nanoparticles
S.N
Compound
Saturation Magnetization
Ms (emu/g)
Sensitivity
(emu)
Coercivity
Hc (G)
Retentivity
Mr(emu/g)
1
Co3O4
188.12
-5.400
1020.10
349.56
2
C3N4– Co3O4
89.56
-5.400
1248.20
82.41
Brunauer-Emmett-Teller (BET) study

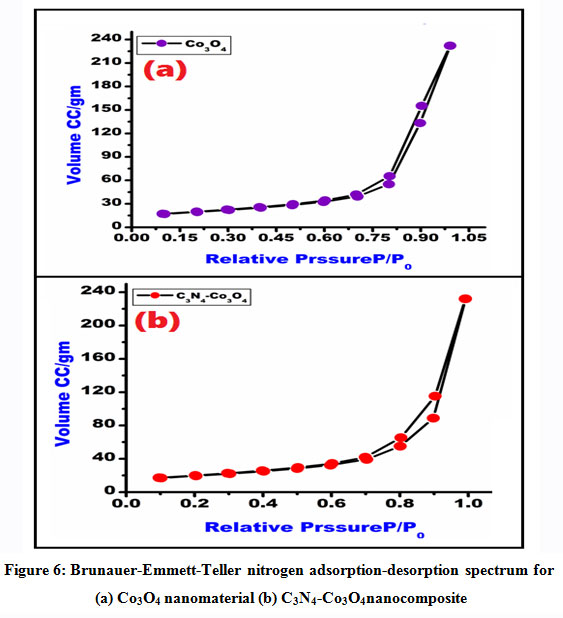

Brunauer-Emmett-Teller nitrogen adsorption-desorption experiment was carried for the fabricated materials Co3O4 andC3N4-Co3O4nanocomposite. BET curves plotted for both these materials as a function of relative (P/P0) against the volume of gas (cc/g) is as depicted in figure 6 a-b. Since, Photocatalysis is a surface phenomenon over the catalyst hence the surface area investigation is very prime for this type of investigations. The BET analysis was carried over the prepared catalysts for the investigation of pore size, pore radius and surface area of the prepared materials. After, the analysis of BET the fundamental properties related to surface entities of the prepared catalysis is as mention in table 2. From the present analysis it was observed that the carbon nitride mediated cobalt oxide material has improved surface area (78.48 m²/g) in contrast to the sole cobalt oxide nanoparticles. According to six BDDT adsorption isotherm categories, the present adsorption is belongs to the type 4 adsorption isotherm category 45.
Table 2: Brunauer-Emmett-Teller pore volume, surface area, pore diameter for Co3O4 nanomaterial and C3N4-Co3O4 nanocomposite
Fabricated Material
Surface Area
(m²/g)
Pore volume
(cc/g)
Pore radius
(Å)
Correlation
Coefficient
(R2)
Co3O4
55.23
0.258
75.70
0.99
C3N4-Co3O4
78.48
0.361
78.47
0.99
Photocatalytic Activity
Both the prepared catalysts viz. Co3O4
nanomaterial and C3N4-Co3O4 nanocomposite
were studied for photocatlytic application over the Carbol Fuchsin basic dye. The photocatlytic
degradation of this was investigated by using photocatlytic rector equipped
with mercury vapor lamp (200 watts). Additionally, the photocatlytic reactor
consists of magnetic stirrer, chiller for circulation of solvent system,
control panel units for function controlling like catalyst loading,
temperature, and dye concentration etc. The various concentrations of selected
dye were prepared in ppm level (mg L-1) for degradation study. The
complete changes in dye concentrations were examined with the aid of double
beam spectrophotometer (Systronics-model number 118), while the pH of the
catalyst system and reaction components was measured with the assists of
digital pH meter (make Lab-India) fitted with glass electrode. General
mechanism of CF dye for both fabricated material and general properties of CF
dye are depicted in figure 7.
The deradation efficiency of the catalys for selected dye concentration was computed using equation
C0 is initial concentration of dye and Ct is concentration of dye at time t

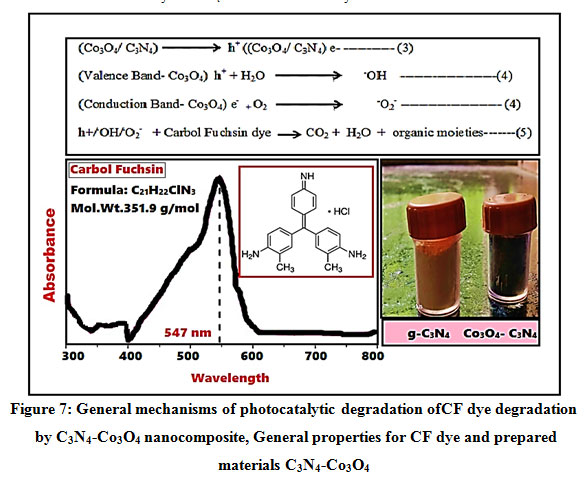

Figure 7: General mechanisms of photocatalytic degradation ofCF dye degradation by C3N4-Co3O4 nanocomposite, General properties for CF dye and prepared materials C3N4-Co3O4
Parameter optimization is an crucial investigation to get overall concluding idea about the effective degradation of dye over catalyst surface. The photocatlytic degradation of dye was conducted at at λ max of 551nm. After careful investigations the suitable parameters to degrade the CarbolFuchsin were observed as, dye concentration of 20 mg/L, catalyst dose of 0.8 g L-1 , pH at 7.5. The overall graphical presentation for dye degradation by fabricated catalysts as depicted in figures from 8, 9, 10, 11.
Effect of catalyst dose
The catalyst dose optimization is a prime step in the photocatlytic degradation process. Since, catalyst is surface at which the overall photocatlytic mechanism is carried out. Here, the fabricated catalysts Co3O4 nanomaterial and C3N4-Co3O4 nanocomposite were utilized in various concentrations from 0.2 to 0.8 g L-1. The catalyst dose was applied from 0.2 to 0.8 g/L for both prepared catalysts at 20 ppm CarbolFuchsin dye concentration in batch experiment study. In every enhancement of catalyst dose from 0.4 to 0.8 g/L catalyst dose at 20 ppm dye concentration, the percent degradation for sole cobalt oxide catalyst was observed to be increase from 53. 18 % to 92.74 % respectively for 0.4 to 0.8 g/L catalyst dose. While in case of carbon nitride mediated cobalt oxide the same batch study was conducted at 20 ppm dye concentration. The percent degradation was observed to be 59.12 % to 97.88 % for 0.4-0.8 8 g/L catalyst dose. The behavior of increase in % degradation due to increment of catalyst dose may be attributed to the increase in more number of active sites over catalysts surface due do increase in catalysts concentration. In case of carbon nitride the highest degradation rate at CarbolFuchsin dye was observed this may be due to enhanced surface area, declined band gap results into more rapid transfer to electrons from valence band to the conduction band of cobalt oxide catalyst. As the electron jumps from valence to the conduction band of catalysts, creates electron hole pair. The positive holes interact with aqua molecules to OH-radicals, while negatively charged electrons come in contact with oxygen moieties to form superoxide radicals. The overall species form at valence band and conduction band responsible for faster degradation of dye. The comparative graph for catalysts dose of Co3O4 nanomaterial and C3N4-Co3O4 nanocomposite is as represented in figure 8a-b.

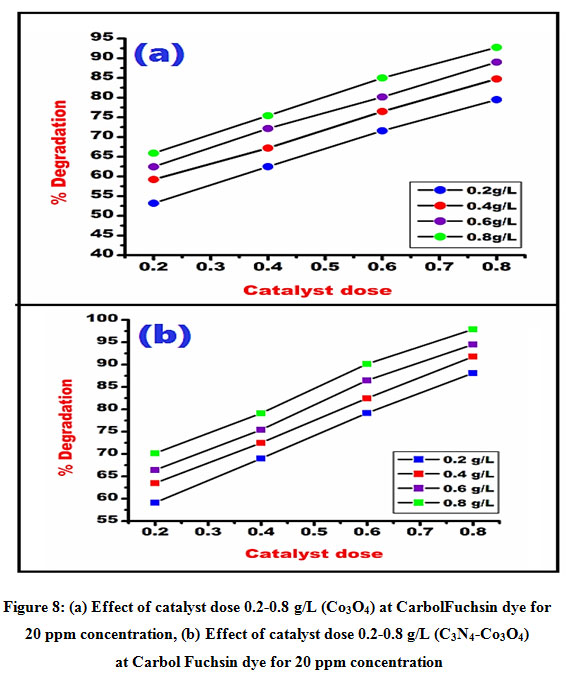

Figure 8: (a) Effect of catalyst dose 0.2-0.8 g/L (Co3O4) at CarbolFuchsin dye for 20 ppm concentration, (b) Effect of catalyst dose 0.2-0.8 g/L (C3N4-Co3O4) at Carbol Fuchsin dye for 20 ppm concentration
Catalysis is surface dependent and pH dependent process. Hence, pH optimizing is an essential process for effective catalysis. For photocatalysis mechanism over both the prepared catalysts, pH was optimized from 1- 12 ranges i.e. from acidic to basic range. Before pH optimization the catalysts dose was fixed at 0.8 g L-1 and CarbolFuchsin dye concentration was fixed at 20 mg L-1.The photocatalysis for both the prepared catalyst was conducted by fixing above criteria and monitored from pH1-12. During this study it was observed that the rate of photocatalysis for both the materials was enhanced from pH1 to 7.5 or approximately pH 8. After crossing pH value 8 the rate of degradation of CarbolFuchsin dye for both the catalysts Co3O4 and C3N4-Co3O4was observed to be declined. Since, the pHpzc(point zero chargeor isoelectric point) calculated for both these materials was 7.5. As per the experimental facts, catalyst surface has net zero charge at pHpzc, while pH>pHpzcthe catalyst surface is anionic in nature (OH– ions) and pH <pHpzcthe catalyst surface is cationic in nature (H+ ions). Hence, the CF dye being anionic in nature will be more attracted blow pHpzcvalue that is 7.5 and hence almost 96 % of dye degradation was observed at pHpzcvalue i.e. 7.5. After this pHpzcvalue the % degradation for both the material was decrease. The probable reason for the decline in degradation was anionic surface after 7.5 pH and being anionic in nature there strong repulsion between dye molecule and catalyst surface charge and hence rate of photocatalysis was found to be decreased after pHpzcvalue.

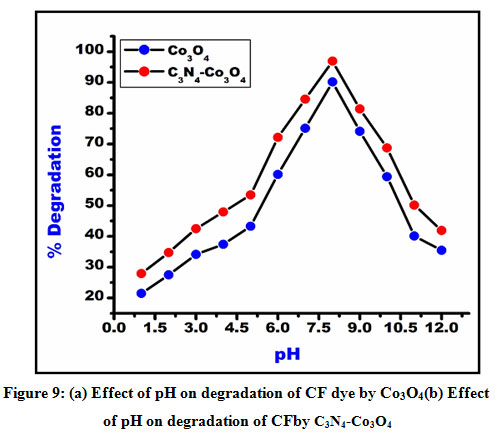

Figure 9: (a) Effect of pH on degradation of CF dye by Co3O4(b) Effect of pH on degradation of CFby C3N4-Co3O4
The catalyst contact time is crucial parameter in photocatalytic degradation phenomenon. Since, the required for efficient degradation for every concentration of dye is can be examined from this study. The curves of contact time between % degradation and time in minutes is as shown in figure 10 a-b for Co3O4 and C3N4-Co3O4 catalysts respectively. From this study it was observed that CF dye was decomposed very faster after induction period of 20 minutes of reaction and stagnant to the reaction equilibrium at the time period of 90 minutes and almost degraded in 110 minutes for each catalyst. The probable justification could be assign to this trend of degradation of CF dye by both catalysts. Since, in the starting period both the catalysts have enough number of sprightly sites which is responsible for faster CF dye degradation. With the enhancement of time, the concentration of dye increase over the catalysts surface and dye concentration is reached at the equilibrium at this stage and degrade in 90 minutes and hereafter get degraded in 110 minutes. TheC3N4– Co3O4catalyst has degradation efficiency for CF dye was 86.13 to 96.89 % for 80-20 ppm CF dye concentration. While for Co3O4 catalysts the rate of dye degradation was found to be 79.10 to 90.14 % over CF dye for 80-20 ppm dye concentration.

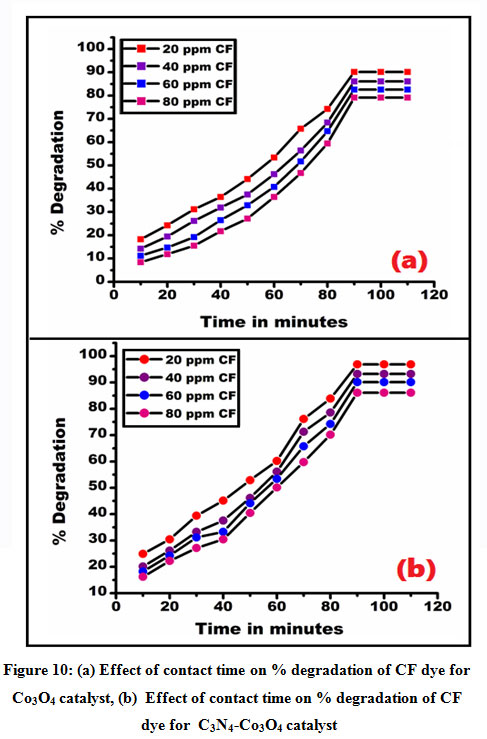

Figure 10: (a) Effect of contact time on % degradation of CF dye for Co3O4 catalyst, (b) Effect of contact time on % degradation of CF dye for C3N4-Co3O4 catalyst
The dye concentration optimization is very essential step in photocatlytic degradation study. The rate of photocatlytic degradation of dye is primarily depends and alter with change in dye concentration.In the present research the CF dye degradation study of carried for the concentration from 20 mgL-1 to 80 mg L-1. The effect of dye concentration study for both the Co3O4 and C3N4-Co3O4catalysts for fixed catalyst dose at various ppm CF dyes is as depicted in figure 11. It is observed from the figure trend that the rate of dye degradation is declined with enhance in dye concentration i.e. the degradation rate was decrease from 20 to 80 ppm. When the catalysts dose is kept definite the active remain constant and hence with increase in dye concentration the photocatlytic degradation efficiency was found to be declined. During the CF dye photocatalysis experiment the adsorption phenomenon between the excited CF dye and catalysts get increase in presence of Hg vapor lamp. This quenching between the catalysts and CF dye is increased with rise in dye concentration, hence reverse trend is observed i.e. with increase in dye concentration photocatlytic degradation rate decrease.

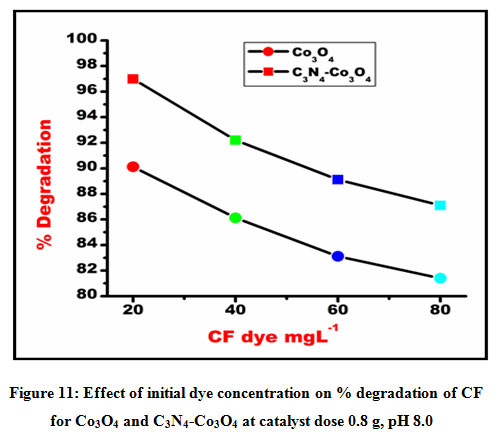

Figure 11: Effect of initial dye concentration on % degradation of CF for Co3O4 and C3N4-Co3O4 at catalyst dose 0.8 g, pH 8.0
Reusability of the Co3O4 and C3N4-Co3O4 nanocomposite
For every catalyst the reusability parameter is crucial to know multiple performance and longtime stability. Due to recycling one can get the overall idea about efficient working of the prepared catalyst for frequent utilization. Both the fabricated materials were utilized for reusability test in four cycles. After every cycle the catalyst was recovered from reaction mixture by filtration process, and then it was dried and calcined in muffle furnace to make it free from adsorbed water molecules. In the first run the C3N4-Co3O4for CF dye was found to be 96.99%, in the second run it was 95.40%, in the third run the degradation rate was found to 94.30% and in the final run 93.10 %. Similarly, for sole Co3O4 the photocatlytic degradation of CF in four runs was found to be 90.12%, 88.20%, 87.12%, 86.16%. The slight declined in the photocatlytic degradation of CF dye by Co3O4 and C3N4-Co3O4nanocomposite is attributed to the decrease in surface active species over the catalyst surface due to more accumulation dye molecules. From the overall study it can be concluded that the carbon nitride mediated cobalt oxide nanocomposite is very efficient in degradation of CF dye in multiple use.

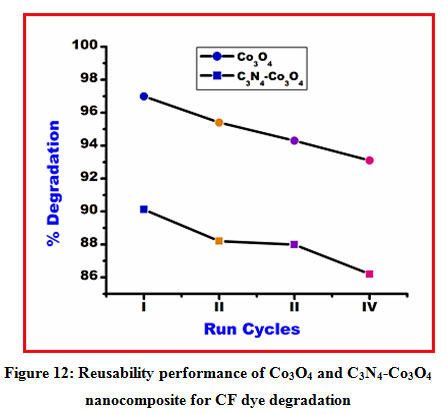

Figure 12: Reusability performance of Co3O4 and C3N4-Co3O4 nanocomposite for CF dye degradation
The material cobalt oxide fabricated by coprecipitation method. While carbon nitride prepared by direct heating of melamine powder. The nanocomposite C3N4-Co3O4 was utilized for photocatlytic degradation of CarbolFuchsin dye. The present work deals with the reporting the model method (laboratory method) for the degradation of water pollutant CarbolFuchsin dye. The prepared catalyst was investigated for series of batch experiments of various dye concentration from 20-80 mg L-1. The ideal batch set up for photocatlytic removal of CF dye was found to be 20 mg L-1, pH 7.5, and catalyst dose of C3N4-Co3O4 0.8 g/L with contact time 110 minutes. The research demonstrates that the prepared catalyst was highly successful for complete mineralization of CF dye, which is very crucial as per as the environmental rehabilitation is concern. The reusability results for C3N4-Co3O4 catalysts show that the fabricated nanocomposite is very efficient for degradation of CF dye for multiple usage of catalyst. This indicate long time stability, efficiency and reusability for the fabricated catalyst C3N4-Co3O4.
Acknowledgment
Authors are gratefully acknowledged to the STIC, Cochin University, Kerala for XRD, SEM, EDS and TEM results. Authors are thankful to SAIF – SPPU Pune University for BET results. Authors also extend sincere thanks to IIT madras for VSM study. Authors are grateful to Department of chemistry, L.V.H. College, Department of zoology, L.V.H. College, Panchavati, Nashik, Department of Chemistry, ACS, College, Satana, District- Nashik and department of chemistry, Arts, Commerce and Science College, Onde, Taluka- Vikramgad, District- Palghar, (MH), India for providing necessary laboratory facilities.
Conflict of interest
Authors declared that they have no conflict of interest regarding the research presented in the current research paper
Funding Source
For the present research we do not received any fund or grand and this work is self-funded
References
Patil, M.R. and Shrivastava,V.S, V.S., 2016. Adsorptive removal of methylene blue from aqueous solution by polyaniline-nickel ferrite nanocomposite: a kinetic approach. Desalination and Water Treatment, 57(13), 5879-5887. CrossRef
Shrivastava, V.S, V.S, V.S. Patil M.R., 2015. Adsorption removal of carcinogenic acid violet19 dye from aqueous solution by polyaniline-Fe2O3 magnetic nano-composite. J. Mater. Environ. Sci, 6, 11-21.
Koli, P.B., Kapadnis, K.H. and Deshpande, U.G., 2018. Study of physico-chemical properties, detection and toxicity study of organic compounds from effluent of MIDC Thane and GIDC Ankleshwar industrial zone. Applied Water Science, 8(7), 1-9. CrossRef
Koli, P.B., Kapadnis, K.H. and Deshpande, U.G., 2019. Nanocrystalline-modified nickel ferrite films: an effective sensor for industrial and environmental gas pollutant detection. Journal of Nanostructure in Chemistry, 9(2), 95-110. CrossRef
Farhadi, S., Manteghi, F. and Tondfekr, R., 2019. Removal of Congo red by two new zirconium metal–organic frameworks: Kinetics and isotherm study. MonatsheftefürChemie-Chemical Monthly, 150(2), 193-205. CrossRef
N.A.H.M.Zaidi, L. B. L. Lim, A.Usman, Enhancing adsorption of malachite green dye using base-modified Artocarpusodoratissimus leaves as adsorbents, Environmental Technology & Innovation 13 (2019) 211–223. CrossRef
E.N. Zare, A. Motahari, M. Sillanpaa, Nano adsorbents based on conducting polymer nanocomposites with main focus on polyaniline and its derivatives for removal of heavy metal ions/ dyes: A review, Environmental Research 162 (2018) 173–195. CrossRef
Singh, R.D., Koli, P.B., Jagdale, B.S. and Patil, A.V., 2019. Effect of firing temperature on structural and electrical parameters of synthesized CeO2 thick films. SN Applied Sciences, 1(4), 1-9. CrossRef
Malini, B. and Raj, G.A.G., 2018. C, N and S-doped TiO2-characterization and photocatalytic performance for rose Bengal dye degradation under day light. Journal of environmental chemical engineering, 6(5), 5763-5770. CrossRef
Patil, M.R., Khairnar, S.D. and Shrivastava, V.S, V.S., 2016. Synthesis, characterization of polyaniline–Fe3O4 magnetic nanocomposite and its application for removal of an acid violet 19 dye. Applied Nanoscience, 6(4), 495-502. CrossRef
Shinde, S.G., Patil, M.P., Kim, G.D. and Shrivastava,V.S, V.S., 2020. Multi-doped ZnOphotocatalyst for solar induced degradation of indigo carmine dye and as an antimicrobial agent. Journal of Inorganic and Organometallic Polymers and Materials, 30(4), 1141-1152. CrossRef
Shinde, S.G., Patil, M.P., Kim, G.D. and Shrivastava,V.S, V.S., 2020. Ni, C, N, S multi-doped ZrO2 decorated on multi-walled carbon nanotubes for effective solar induced degradation of anionic dye. Journal of Environmental Chemical Engineering, 8(3), 103769. CrossRef
Koli, P.B., Kapadnis, K.H., Deshpande, U.G. and Patil, M.R., 2018. Fabrication and characterization of pure and modified Co3O4nanocatalyst and their application for photocatalytic degradation of eosine blue dye: a comparative study. Journal of Nanostructure in Chemistry, 8(4), 453-463. CrossRef
Shinde, V.S., Kapadnis, K.H., Sawant, C.P., Koli, P.B. and Patil, R.P., 2020. Screen Print Fabricated In3+ Decorated Perovskite Lanthanum Chromium Oxide (LaCrO3) Thick Film Sensors for Selective Detection of Volatile Petrol Vapors. Journal of Inorganic and Organometallic Polymers and Materials, 30(12), 5118-5132. CrossRef
Adole, V.A., Pawar, T.B., Koli, P.B. and Jagdale, B.S., 2019. Exploration of catalytic performance of nano-La2O3 as an efficient catalyst for dihydropyrimidinone/thione synthesis and gas sensing. Journal of Nanostructure in Chemistry, 9(1), 61-76. CrossRef
Adole, V.A., Pawar, T.B. and Jagdale, B.S., 2020. Aqua‐mediated rapid and benign synthesis of 1, 2, 6, 7‐tetrahydro‐8H‐indeno [5, 4‐b] furan‐8‐one‐appended novel 2‐arylidene indanones of pharmacological interest at ambient temperature. Journal of the Chinese Chemical Society, 67(2), 306-315. CrossRef
Han, C., Ge, L., Chen, C., Li, Y., Xiao, X., Zhang, Y. and Guo, L., 2014. Novel visible light induced Co3O4-g-C3N4heterojunctionphotocatalysts for efficient degradation of methyl orange. Applied Catalysis B: Environmental, 147, 546-553. CrossRef
Gao, C., Meng, Q., Zhao, K., Yin, H., Wang, D., Guo, J., Zhao, S., Chang, L., He, M., Li, Q. and Zhao, H., 2016. Co3O4 Hexagonal Platelets with Controllable Facets Enabling Highly Efficient Visible‐Light Photocatalytic Reduction of CO2. Advanced Materials, 28(30),.6485-6490. CrossRef
Fu, J., Yu, J., Jiang, C. and Cheng, B., 2018. g‐C3N4‐Basedheterostructuredphotocatalysts. Advanced Energy Materials, 8(3), 1701503. CrossRef
He, F., Wang, Z., Li, Y., Peng, S. and Liu, B., 2020. The nonmetal modulation of composition and morphology of g-C3N4-based photocatalysts. Applied Catalysis B: Environmental, 269, 118828. CrossRef
Sheng, Y., Wei, Z., Miao, H., Yao, W., Li, H. and Zhu, Y., 2019. Enhanced organic pollutant photodegradation via adsorption/photocatalysis synergy using a 3D g-C3N4/TiO2 free-separation photocatalyst. Chemical Engineering Journal, 370, 287-294. CrossRef
Wang, Y., Yang, W., Chen, X., Wang, J. and Zhu, Y., 2018. Photocatalytic activity enhancement of core-shell structure g-C3N4@TiO2 via controlled ultrathin g-C3N4 layer. Applied Catalysis B: Environmental, 220,337-347. CrossRef
Koli, P.B., Kapadnis, K.H., Deshpande, U.G., Tupe, U.J., Shinde, S.G. and Ingale, R.S., 2021. Fabrication of thin film sensors by spin coating using sol-gel LaCrO3Perovskite material modified with transition metals for sensing environmental pollutants, greenhouse gases and relative humidity. Environmental Challenges, 3, 100043. CrossRef
Di, G., Zhu, Z., Huang, Q., Zhang, H., Zhu, J., Qiu, Y., Yin, D. and Zhao, J., 2019. Targeted modulation of g-C3N4photocatalytic performance for pharmaceutical pollutants in water using ZnFe-LDH derived mixed metal oxides: Structure-activity and mechanism. Science of The Total Environment, 650, 1112-1121. CrossRef
Wang, P., Ng, D.H., Zhou, M. and Li, J., 2019. Freely standing MgAl-layered double hydroxides nanosheets and their derived metal oxides on g-C3N4thin-layer designed for obtaining synergic effect of adsorption and photocatalysis. Applied Clay Science, 178,105131. CrossRef
Koli, P.B., Kapadnis, K.H. and Deshpande, U.G., 2019. Transition metal decorated Ferossoferric oxide (Fe3O4): An expeditious catalyst for photodegradation of CarbolFuchsin in environmental remediation. Journal of Environmental Chemical Engineering, 7(5), 103373. CrossRef
Koli, P.B., Kapadnis, K.H., Deshpande, U.G., More P. B. and Tupe, U.J., 2020. Sol-Gel Fabricated Transition Metal Cr3+, Co2+ Doped Lanthanum Ferric Oxide (LFO-LaFeO3) Thin Film Sensors for the Detection of Toxic, Flammable Gases: A Comparative Study. Material Science Research India, 17(1), 70-83. CrossRef
Zhang, X., Yuan, X., Jiang, L., Zhang, J., Yu, H., Wang, H. and Zeng, G., 2020. Powerful combination of 2D g-C3N4 and 2D nanomaterials for photocatalysis: Recent advances. Chemical Engineering Journal, 390, 124475. CrossRef
Li, Z., Raziq, F., Liu, C., Bai, L. and Jing, L., 2017. Surface-engineering strategies for g-C3N4as efficient visible-light photocatalysts. Current Opinion in Green and Sustainable Chemistry, 6, 57-62. CrossRef
Reddy, K.R., Reddy, C.V., Nadagouda, M.N., Shetti, N.P., Jaesool, S. and Aminabhavi, T.M., 2019. Polymeric graphitic carbon nitride (g-C3N4)-based semiconducting nanostructured materials: synthesis methods, properties and photocatalytic applications. Journal of environmental management, 238, 25-40. CrossRef
Sano, T., Sato, H., Hori, T., Hirakawa, T., Teramoto, Y. and Koike, K., 2019. Effects of polymeric-and electronic-structure of graphitic carbon nitride (g-C3N4) on oxidative photocatalysis. Molecular Catalysis, 474, 110451. CrossRef
Xu, Y., Wang, L., Cao, P., Cai, C., Fu, Y. and Ma, X., 2016. Mesoporous composite nickel cobalt oxide/graphene oxide synthesized via a template-assistant co-precipitation route as electrode material for supercapacitors. Journal of Power Sources, 306, 742-752. CrossRef
Reena, R.S., Aslinjensipriya, A., Jose, M. and Das, S.J., 2020. Investigation on structural, optical and electrical nature of pure and Cr-incorporated cobalt oxide nanoparticles prepared via co-precipitation method for photocatalytic activity of methylene blue dye. Journal of Materials Science: Materials in Electronics, 31(24), 22057-22074. CrossRef
Jiang, X., Li, J., Fang, J., Gao, L., Cai, W., Li, X., Xu, A. and Ruan, X., 2017. The photocatalytic performance of g-C3N4from melamine hydrochloride for dyes degradation with peroxymonosulfate. Journal of Photochemistry and Photobiology A: Chemistry, 336, 54-62. CrossRef
Chen, X., He, M., He, G., Zhou, Y., Ren, J. and Meng, C., 2020. Synthesis of magnetic g-C3 N4/NiFe2O4nanocomposite for enhanced visible-light photocatalytic performance. Applied Nanoscience, 10(12), 4465-4473. CrossRef
Karthik, P., Gowthaman, P., Venkatachalam, M. and Saroja, M., 2020. Design and fabrication of g-C3N4nanosheets decorated TiO2 hybrid sensor films for improved performance towards CO2 gas. Inorganic Chemistry Communications, 119, 108060. CrossRef
Kong, W., Zhang, X., Chang, B., Zhou, Y., Zhang, S., He, G., Yang, B. and Li, J., 2018. Fabrication of B doped g-C3N4/TiO2heterojunction for efficient photoelectrochemical water oxidation. ElectrochimicaActa, 282, 767-774. CrossRef
Zhu, M., Yu, S., Ge, R., Feng, L., Yu, Y., Li, Y. and Li, W., 2019. Cobalt oxide supported on phosphorus-doped g-C3N4as an efficient electrocatalyst for oxygen evolution reaction. ACS Applied Energy Materials, 2(7), 4718-4729. CrossRef
Mohammad, A., Khan, M.E., Yoon, T. and Cho, M.H., 2020. NaO-co-doped-graphitic-carbon nitride (NaO/g-C3N4) for nonenzymatic electrochemical sensing of hydrogen peroxide. Applied Surface Science, 525, 146353. CrossRef
Luo, D., Liu, S., Liu, J., Zhao, J., Miao, C. and Ren, J., 2018. Catalytic combustion of toluene over cobalt oxides supported on graphitic carbon nitride (CoOx/g-C3N4) catalyst. Industrial & Engineering Chemistry Research, 57(35), 11920-11928. CrossRef
Zhu, Y., Wan, T., Wen, X., Chu, D. and Jiang, Y., 2019. Tunable Type I and II heterojunction of CoOx nanoparticles confined in g-C3N4nanotubes for photocatalytic hydrogen production. Applied Catalysis B: Environmental, 244, 814-822. CrossRef
Konstas, P.S., Konstantinou, I., Petrakis, D. and Albanis, T., 2018. Synthesis, characterization of g-C3N4/SrTiO3heterojunctions and photocatalytic activity for organic pollutants degradation. Catalysts, 8(11), 554. CrossRef
Ngullie, R.C., Alaswad, S.O., Bhuvaneswari, K., Shanmugam, P., Pazhanivel, T. and Arunachalam, P., 2020. Synthesis and Characterization of Efficient ZnO/g-C3N4NanocompositesPhotocatalyst for Photocatalytic Degradation of Methylene Blue. Coatings, 10(5), p.500. CrossRef
Hao, J., Wang, Q. and Zhao, Z., 2017. Synthesis and characterization of g-C3N4/BiNbO4 composite materials with visible light photocatalytic activity. Journal of Photochemistry and Photobiology A: Chemistry, 335, pp.94-101. CrossRef
Rathi, V., Panneerselvam, A. and Sathiyapriya, R., 2020. Graphitic carbon nitride (g-C3N4) decorated ZnWO4 heterojunctions architecture synthesis, characterization and photocatalytic activity evaluation. Diamond and Related Materials, 108, 107981. CrossRef
Material Science Research India An International Peer Reviewed Research Journal
PDF Downloads:
742
Open
Access -
, Shubham Nand kishor Hiray2, Kailas Haribhau Kapadnis2
